CCS V6 DLOG_4CH Graph Problem

SiFang

Other Parts Discussed in Thread: CONTROLSUITE

I just installed CCS Version: 6.1.2.00015 and tried to run example project ( 2xPM_Sensorless_v1_1) from controlsuite. I got to the point that everything was working properly except graph display of DlogCh1 and DlogCh2 variables. For some reasons that the displays showed zero value all the time even the watch window showed a non zero value for the variables. Please see snapshot below. The graph function was working previously with CCS4.2. I also tried graphing by getting rid of Crosshairs related stuff but I got the same result. I am wondering if CCS V6 is compatible with controlsuite. Please advise.

Thanks

over 9 years ago

0 SiFang over 9 years ago

Prodigy 90 points

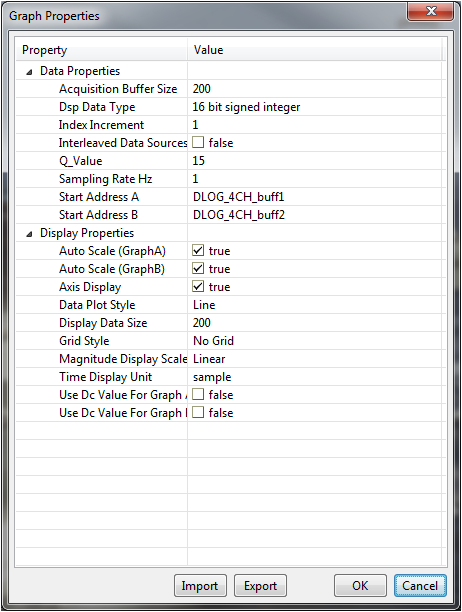

These are another snapshots after taking care of licensing issue. Now the CCS V6 shows FULL license but I am still having the same problem.

0 Manish Bhardwaj over 9 years ago in reply to SiFang

TI__Mastermind 43730 points

I see an issue with the dlog connection, it is connected to SpeedRef in the above code,

SpeedRef is a DC value and because it does not have a transition it will not trigger a DLOG, hence you see the flat line...

in build level 1 , you should use

DlogCh1=(int16)_IQtoIQ15(svgen_dq1.Ta)

0 SiFang over 9 years ago in reply to Manish Bhardwaj

Prodigy 90 points

Manish,

Yes! You fixed my problem! Thank you very much!

It works fine now running in RAM configuration. I still have problem running in Flash configuration. But I am happy with what I have now.
