DMC library cycle usage

Tom_Chen

Intellectual 695 points

Other Parts Discussed in Thread: CONTROLSUITE

I'm new to the digital motor control

I'm wondering how many cycle will cost while execute the Park or Clark Transform for the DMC library

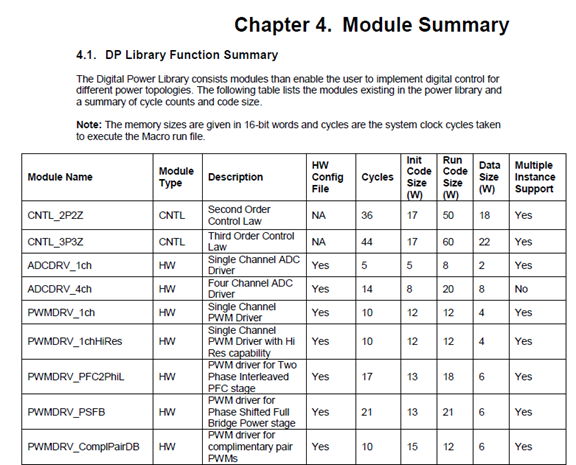

Is there documentation like DPlib illustrate the detail of the DMC Math block?

thanks

over 9 years ago

0 Gautam Iyer over 9 years ago

Guru 192875 points

Hi Tom,

It seems there's no such data out there but its very simple to calculate the same if you've any C2000 hardware. Use Clock Profiler in CCS.

Regards,
Gautam

0 Tom_Chen over 9 years ago in reply to Gautam Iyer

Intellectual 695 points

thank you for your reply, is there any simple example for Clock Profiler in CCS
Im new to the software develop. thank you

http://processors.wiki.ti.com/index.php/Profile_clock_in_CCS

0 Gautam Iyer over 9 years ago in reply to Tom_Chen

Guru 192875 points

You can refer this wiki article: processors.wiki.ti.com/.../Profiling_on_C28x_Targets

0 ChrisClearman over 9 years ago

TI__Guru** 119670 points

most of the motor control examples in controlSUITE include a document with the cycle count for each module used

CPU Utilization of Sensorless FOC of PMSM
Name of Modules * Number of Cycles
Ramp Controller 29
Clarke Tr. 28
Park Tr. 142
I_Park Tr. 41
Sliding Mode Obs. 273
Speed Estimator 72
Phase Volt Calc. 115
3 x Pid Grando 167
Space Vector Gen. 137
Pwm Drv 74
Contxt Save etc. 53
