How to Simulate C2000 Solar HV DC-DC Converter

user3698291

Prodigy 30 points

Other Parts Discussed in Thread: CONTROLSUITE

Hello,

I have a development kit http://www.ti.com/tool/TIDM-SOLAR-DCDC. How can I simulate this kit ?

Thank you.

over 9 years ago

0 Gautam Iyer over 9 years ago

Guru 192875 points

Hi,

What do you mean by simulate? You can simply run the example code present in controlSuite.

Regards,
Gautam

0 user3698291 over 9 years ago in reply to Gautam Iyer

Prodigy 30 points

How can I simulate the circuit on Plecs ? I can use example code but i need simulate this circuit.

0 Gautam Iyer over 9 years ago in reply to user3698291

Guru 192875 points

Ohh.. understand. You want to simulate the circuit. Schematics are available in controlSuite if that's what you're looking for.

0 user3698291 over 9 years ago in reply to Gautam Iyer

Prodigy 30 points

Hi Gautam,

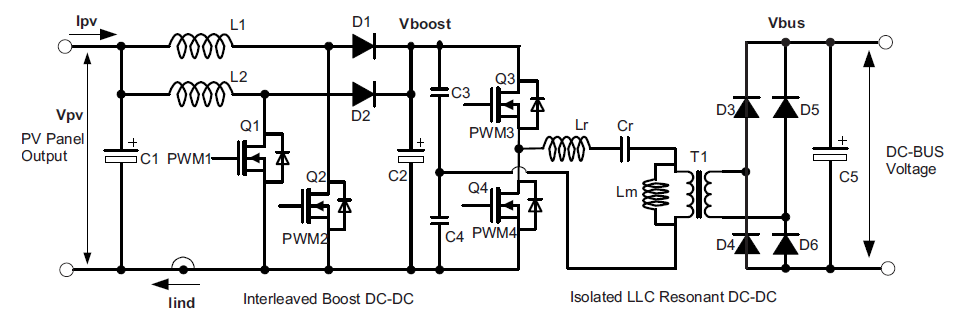

Thanks for your reply. I have already make the system work however I would like to compare simulation and the evaluation board results. The thing I am struggling is to find real values of the components. I have draw the same circuit below but I could not get the results as I acquired from the evaluation board. The documentation is limited and when we asked a question to TI, it takes too long to get an answer. This is probably normal I imagine they are too busy. Anyway, any document which shows the values or an idea to match simulation and experiements would be nice.

Cheers,

Gürkan
