TMS320F28069 Trapezoidal Commutation for BLDC

umit GULER

Other Parts Discussed in Thread: TMS320F28069, MOTORWARE, INSTASPIN-BLDC, CONTROLSUITE, DRV8302

Hi everyone,

We use TMS320F28069 and we do not want to use FOC or Motion control, we want to use only Trapezoidal Commutation for BLDC.

I downloaded motorware software but it contains only Foc and Motion control software.

I didn't find software for Trapezoidal Commutation for BLDC.

Can you help me about that?

Best Regards..

over 9 years ago

0 ChrisClearman over 9 years ago

TI__Guru** 119670 points

MotorWare is just for InstaSPIN-FOC and -MOTION

this tab shows the actual tools to use
www.ti.com/.../tools_software.shtml

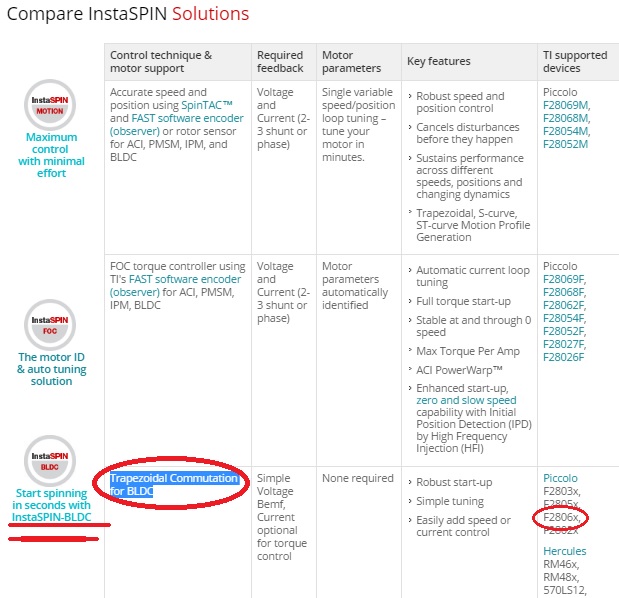

these are the InstaSPIN-BLDC versions, but there is also standard sensorless BLDC, Hall BLDC, and sensorless SMO FOC:

controlSUITE:
C:\ti\controlSUITE\development_kits\DRV830x-HC-C2-KIT_v105\InstaSPIN_BLDC
C:\ti\controlSUITE\development_kits\DRV8312-C2-KIT_v128\InstaSPIN_BLDC

0 umit GULER over 9 years ago in reply to ChrisClearman

Intellectual 490 points

Hi ChrisClearman,

Thank you for your response,

We use TMS320f28069 and DRV8302 on our board and I investigated what you send me.

I think, I did not see any software for TMS320f28069 and DRV8302. All of them for foc or motion control.

So, do I have to use foc or motion control?

Please give me some advice, what can we do?

Regards,

0 ChrisClearman over 9 years ago in reply to umit GULER

TI__Guru** 119670 points

install controlSUITE

the controlSUITE paths I gave you above are for projects that are dual built for F28035 and F28069 controlCARDs. They come up as F28035 but in CCS you can change the project active configuration to F2806x

0 umit GULER over 9 years ago in reply to ChrisClearman

Intellectual 490 points

thank you ChrisClearman
