First steps with a DSP. A TMS320F2812 to be exact

Nicolas Caceres

Other Parts Discussed in Thread: TMS320F28027

Hello everyone, i'm an electronic engineering student and i'm new into this world of embedded systems so i don't know where to start, that's why i would be very grateful if you can give some help.

Also, i want to know if this device is compatible with Labview and Matlab (which versions) cause i can't find the modules. Besides, this device only has parallel port and i have a laptop so, is there a way to connect via USB? or is there another solution you can give me?

Thank you very much in advance and sorry for my english.

over 9 years ago

0 Gautam Iyer over 9 years ago

Guru 192875 points

Hi Nic,

Nicolas Caceres said:
i don't know where to start, that's why i would be very grateful if you can give some help.

Download the below zip file for all example codes and peripheral header/source files.

Nicolas Caceres said:
Also, i want to know if this device is compatible with Labview and Matlab (which versions) cause i can't find the modules.

Matlab should be supported but I'm not sure which version as the this device is pretty old.

Nicolas Caceres said:
Besides, this device only has parallel port and i have a laptop so, is there a way to connect via USB? or is there another solution you can give me?

There should be a provision for attaching JTAG device such as XDS100v2 on the board. Populate the JTAG with a Header and purchase the inexpensive XDS100v2 for debugging purpose.

What is the reason you want to work on this kit? This is pretty old one. If college has it and is making you to work on the same... I would recommend you to purchase the C2000 launchpad based on TMS320F28027. Its around $17 only :)

Regards,

Gautam

0 Brian McKay over 9 years ago in reply to Gautam Iyer

Mastermind 9005 points

Hi,

MathWorks supports C2812 devices with our C2000 Support Package, which requires Simulink and Embedded Coder. We started support in release R2013b.

Here are the doc pages for more info on the blocks we have. Login may be required.

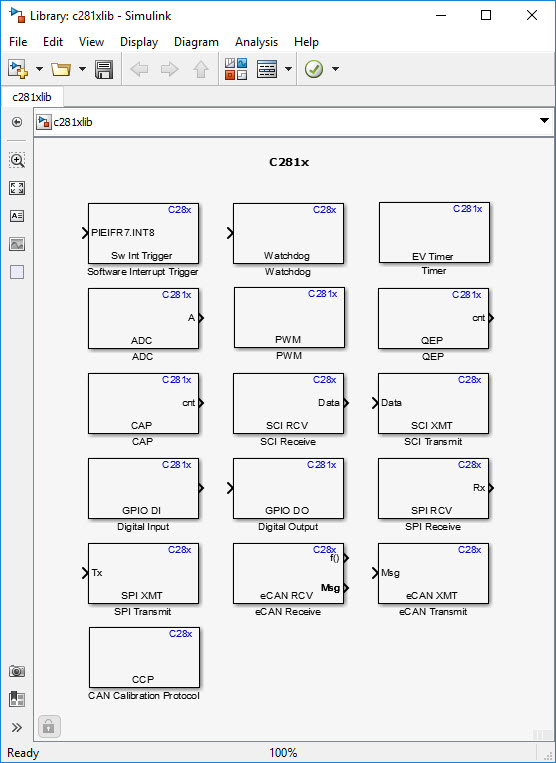

C281x Generic Blocks (work for all C28x MCU's): http://www.mathworks.com/help/supportpkg/texasinstrumentsc2000/c281x-generic-blocks.html

C281x Blocks: http://www.mathworks.com/help/supportpkg/texasinstrumentsc2000/c281x-blocks.html

More info about MathWorks C2000 solution is in this thread: https://e2e.ti.com/support/microcontrollers/c2000/f/171/p/484814/194895

-Brian

0 Ryan Edwards over 9 years ago

Prodigy 225 points

A good resource for learning more about the 2812 is through TI's free workshops (processors.wiki.ti.com/.../C2000_Archived_Workshops. The tutorial for the 2812 is an excellent way to become acquainted with this microcontroller especially for new users.

0 Nicolas Caceres over 9 years ago in reply to Gautam Iyer

Prodigy 60 points

Thank you so much Gautam, and yeah college has it and my graduation project director want me to work on it. Too bad it's too old but i'm curious about this DSP's world. But if you say it's not worth working on this machine, i could change to another embedded system like Arduino or FPGA.

0 Nicolas Caceres over 9 years ago in reply to Brian McKay

Prodigy 60 points

Thanks a lot Brian.

0 Nicolas Caceres over 9 years ago in reply to Ryan Edwards

Prodigy 60 points

Thanks Ryan.

0 Nicolas Caceres over 9 years ago in reply to Gautam Iyer

Prodigy 60 points

I forgot to add a picture. Here it is:

0 Hareesh Janakiraman over 9 years ago in reply to Nicolas Caceres

TI__Guru* 95315 points

Nicolas,

What you have is the F2812 eZdsp development platform. One used to be able to connect to it directly using the parallel port of a PC (without the need for any emulator). Now that PCs don’t come with parallel ports anymore, you could buy a XDS100v2 JTAG emulator and directly connect to the 14-pin JTAG emulator on the board. Admittedly, this DSP was introduced well over a decade ago. However, this is still widely used/adopted by our customers. Gautam does make a good point about latching on to our newer devices that are indeed more powerful, with a richer set of peripherals and come with lower cost development platforms like the Launchpad.
