CCS/LAUNCHXL-F28069M: Datalog in Lab1b and Lab1c was not real-time logging!!!

Tran Binh Duong

Part Number: LAUNCHXL-F28069M
Other Parts Discussed in Thread: MOTORWARE

Tool/software: Code Composer Studio

Dear all,

I want to use DATALOG module which is introduced in MotorWare 18, Lab1b and Lab1c to show my signals while developing my project. But when I tried this module by running Lab1b and 1c, I could not get the real-time data logging results.

The strange is I could not receive the smooth signal like the demonstration in the document InstaSPIN Projects and Labs User's Guide (for MotorWare 18).

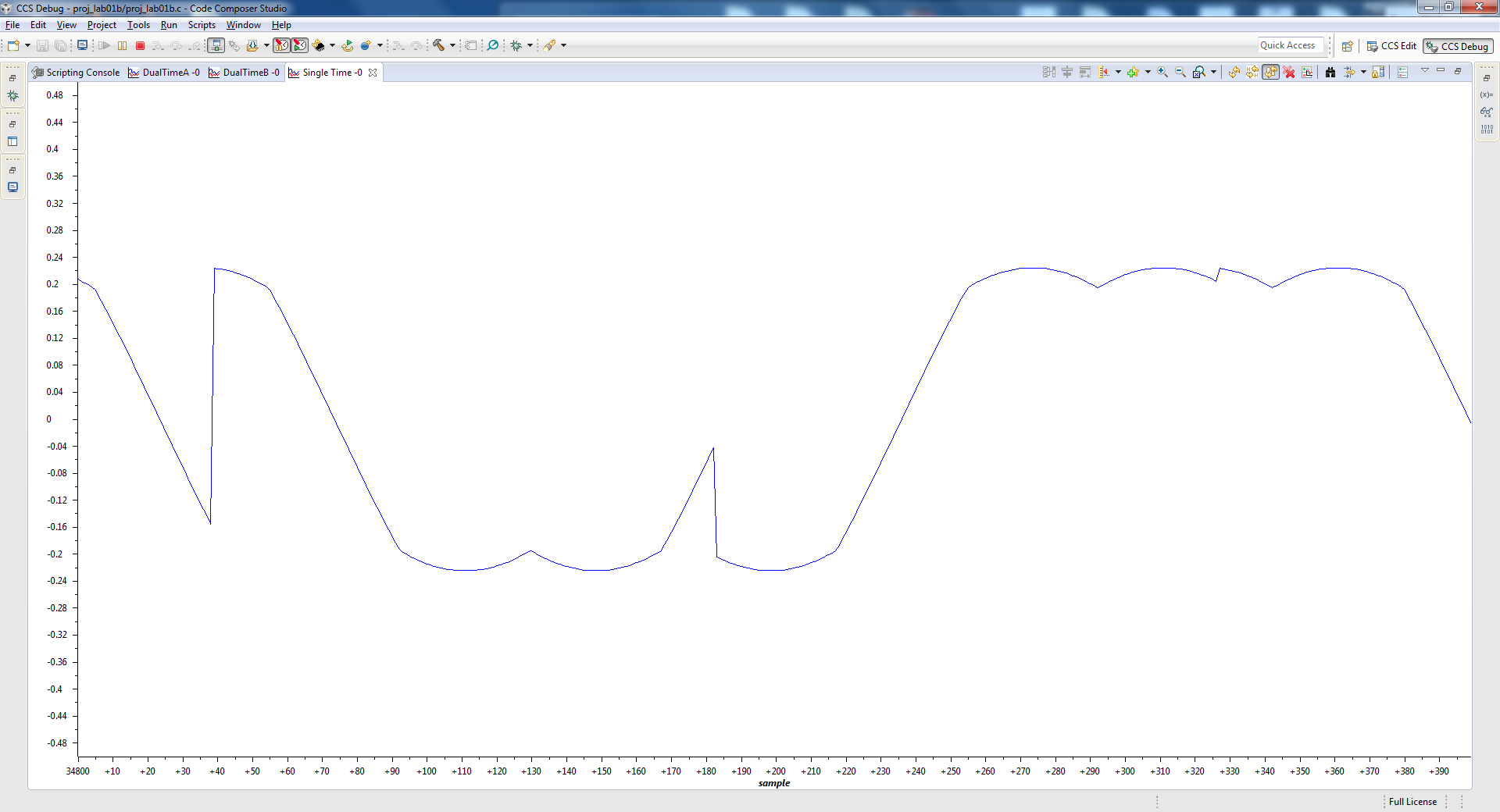

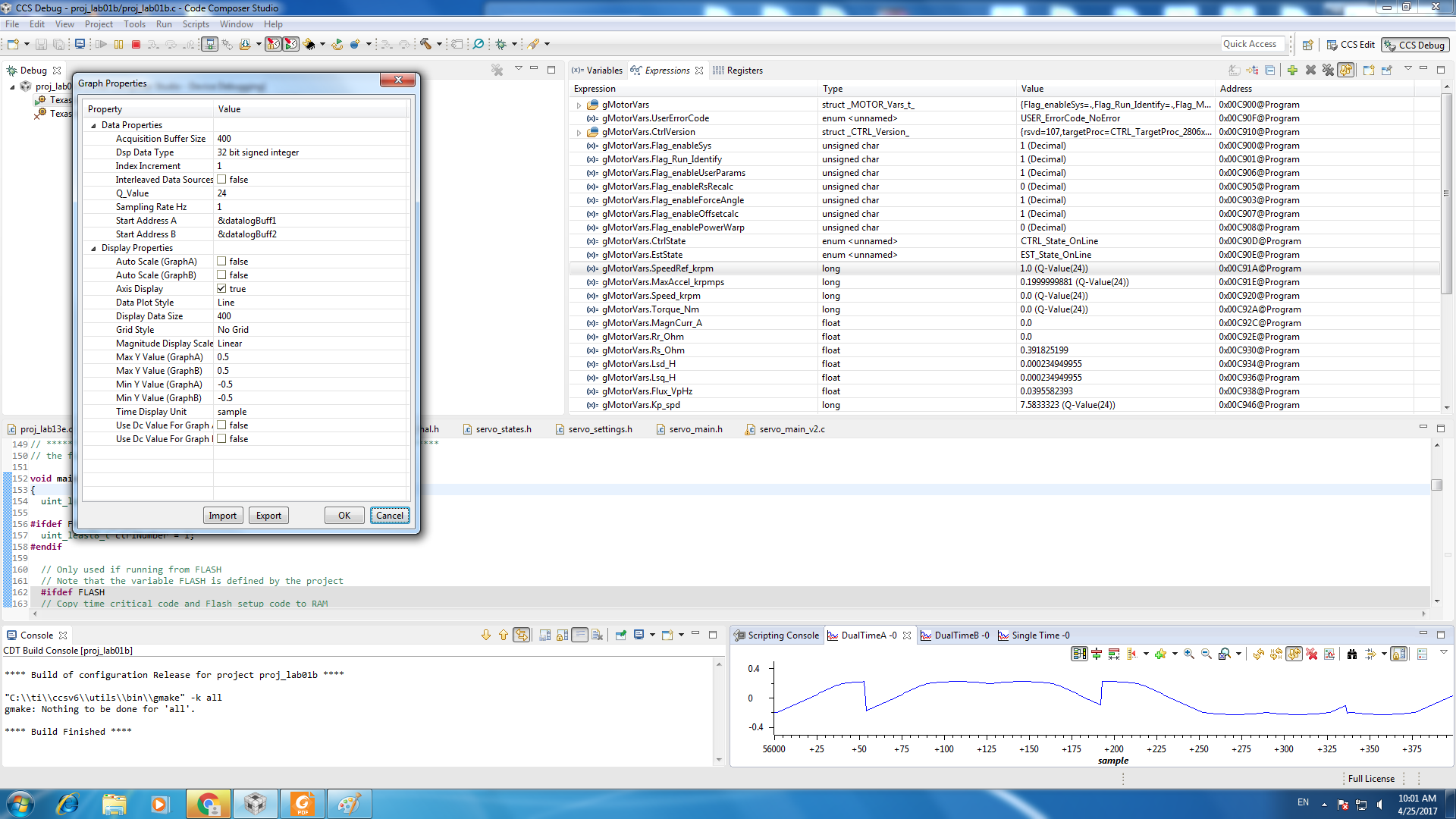

Below is my results when running Lab1b:

Please help me to solve this issue,

Many thanks in advance.

over 8 years ago

0 Yanming Luo over 8 years ago

TI__Guru** 115470 points

The waveform you get is right, and the logging data is real time data also in both lab01b and lab01. The data log buffer is only 400 dual-words, so new data will over write the old data from the starting position of data log buffer when the data log buffer overflow.

You can set datalog.Flag_EnableLogOneShot to TRUE to get a frame real data at a time.

0 Tran Binh Duong over 8 years ago in reply to Yanming Luo

Expert 2550 points

Dear Yanming,

Thank you for your feedback. So according to your explanation, I can increase the size of data log buffer to reduce over-writing, can't I?

Many thanks for your verification.

0 Yanming Luo over 8 years ago in reply to Tran Binh Duong

TI__Guru** 115470 points

Right. You can increase the buff size if the memory is enough.

0 Tran Binh Duong over 8 years ago in reply to Yanming Luo

Expert 2550 points

Dear Yanming,

I don't understand why the datalog did not show on the plot when I set datalog.Flag_EnableLogOneShot = true as you suggested?

How can I observe the real-time data with datalog graph tool? Because I want to know the step response of Speed Controller in InstaSPIN.
