TMS320F2808: practical conversion delay

Waseem Ahmad

Part Number: TMS320F2808

What is the practical analog to digital conversion delay in TMS320F2808 development box. How to quantify the error in measurement due to this delay

over 7 years ago

0 tlee over 7 years ago

TI__Guru 62975 points

Waseem,

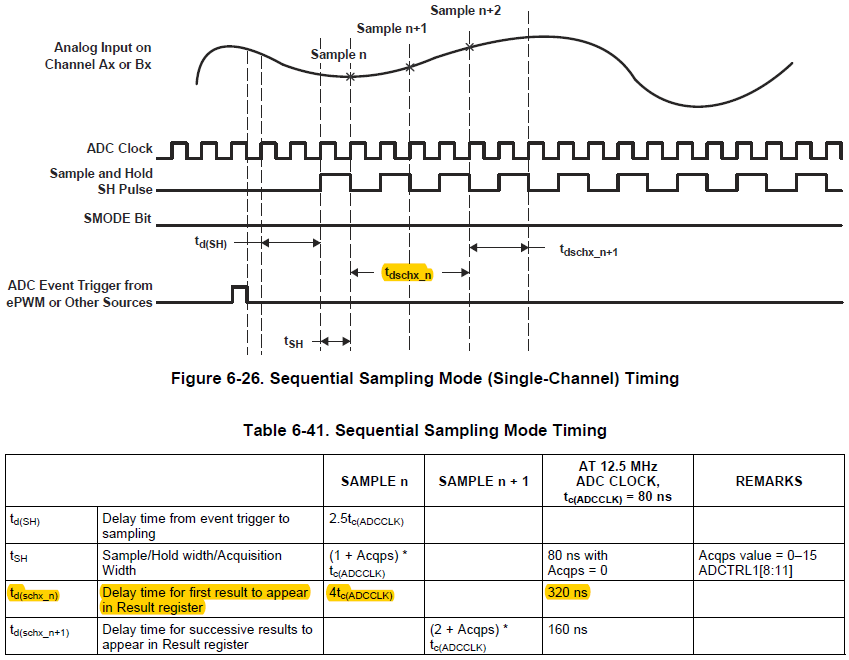

You can refer to the ADC timing diagram in the datasheet for the conversion delay. Applications can compensate for the trigger delay + S/H times by triggering the ADC conversion earlier.

I suppose your error would be a phase delay.

-Tommy

0 Waseem Ahmad over 7 years ago in reply to tlee

Intellectual 460 points

Thanks a lot for this.
But i am not able to understand these timing diagram.
Can u suggest some document from where i can understand in a simplified manner
waiting for your reply

0 tlee over 7 years ago in reply to Waseem Ahmad

TI__Guru 62975 points

Waseem,

The ADC Reference Guide has additional information on ADC operation.

-Tommy

0 tlee over 7 years ago in reply to tlee

TI__Guru 62975 points

Waseem,

It has been over two weeks since your last update. I assume that you were able to resolve your issue. If this isn’t the case, please reject this resolution and reply to this thread. If this thread is locked, please make a new thread describing the current status of your issue.

-Tommy
