TIDM-HV-1PH-DCAC: About The Gate Drive

Damith Pavithra

Expert 1125 points

Part Number: TIDM-HV-1PH-DCAC
Other Parts Discussed in Thread: C2000WARE-DIGITALPOWER-SDK, CONTROLSUITE

what is the gate drive used in this reference design. What is the purpose of the transformer shown in the figure

over 7 years ago

0 Manish Bhardwaj over 7 years ago

TI__Mastermind 43730 points

Damith,

1. The SW for the design is available under c2000ware-digitalpower-sdk, digital power sdk. When you donwload the SW, the gate driver HW design files will be located under

solutions\tidm_hv_1ph_dcac\hardware\igbtgatedriver

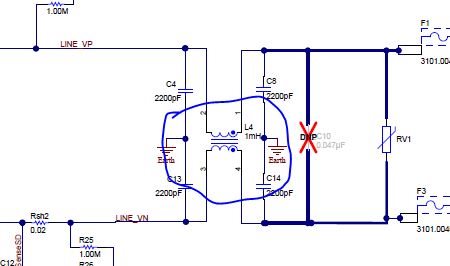

2. What you circled above is the common mode choke, its typically part of the EMI filter.

0 Damith Pavithra over 7 years ago in reply to Manish Bhardwaj

Expert 1125 points

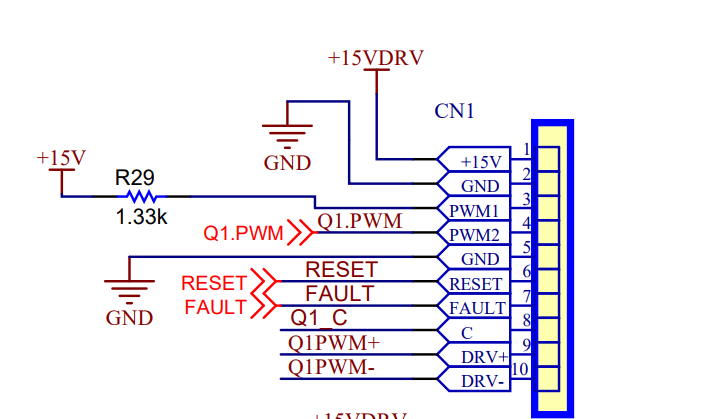

Thanks for your response. I checked the path you provided and I only found this PDF which contains some kind of transformer. There is nothing about a gate driver IC. Schematic PDF only have some kind of connector which labeled CN1. No details about gate driver. Thank you. SPT-10E2877-T-20140401.pdf

0 Manish Bhardwaj over 7 years ago in reply to Damith Pavithra

TI__Mastermind 43730 points

Ok ,

can you please download controlSUITE, it is definitely there.

C:\ti\controlSUITE\development_kits\HV_1PH_DCAC\v1_04_00_00\hardware\igbtgatedriver

It should have been included in the SDK but it is not, I have a filed a bug and it should be there in the sep release of the sdk.

-Manish
