CCS/TMS320F28075: Failed erase flash on F28075 device

Sheldon He

Expert 8585 points

Part Number: TMS320F28075

Tool/software: Code Composer Studio

Hi expert,

My customer failed loading program on their customized F28075 board. It that a problem related to hardware design?

Thanks

Sheldon

over 7 years ago

0 Vamsi Gudivada over 7 years ago

TI__Guru* 87155 points

Sheldon,

What is the CCS version that the customer is using? Please suggest them to use the latest version.

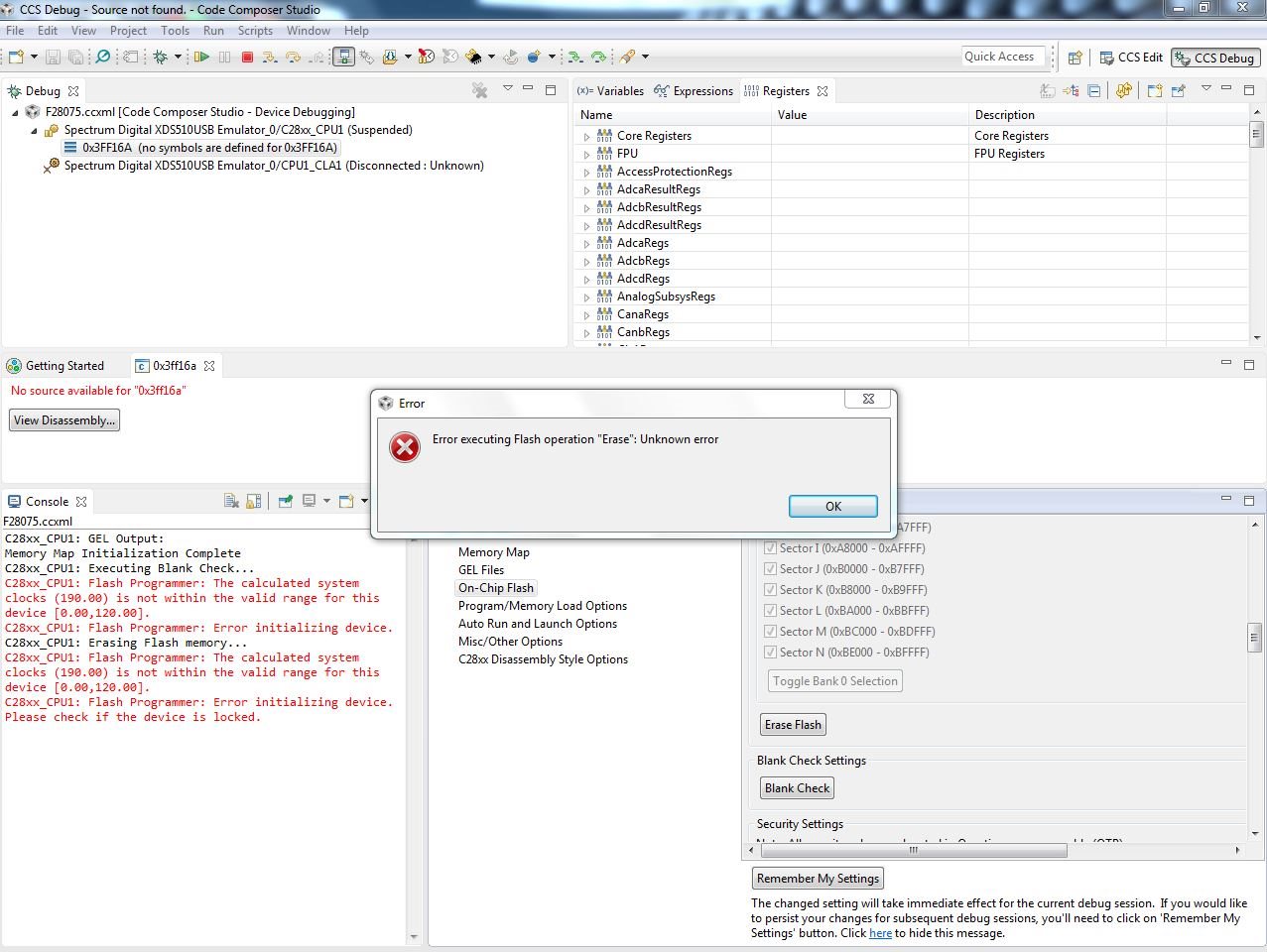

From the console window error message, I can see that they are trying to erase/program at a frequency higher than that is allowed for this device. Could you suggest them to configure the On-Chip Flash Plugin GUI's PLL settings for 120MHz?

Thanks and regards,
Vamsi

0 Sheldon He over 7 years ago in reply to Vamsi Gudivada

TI__Expert 8585 points

Hi Vamsi,

I will let them use the latest.

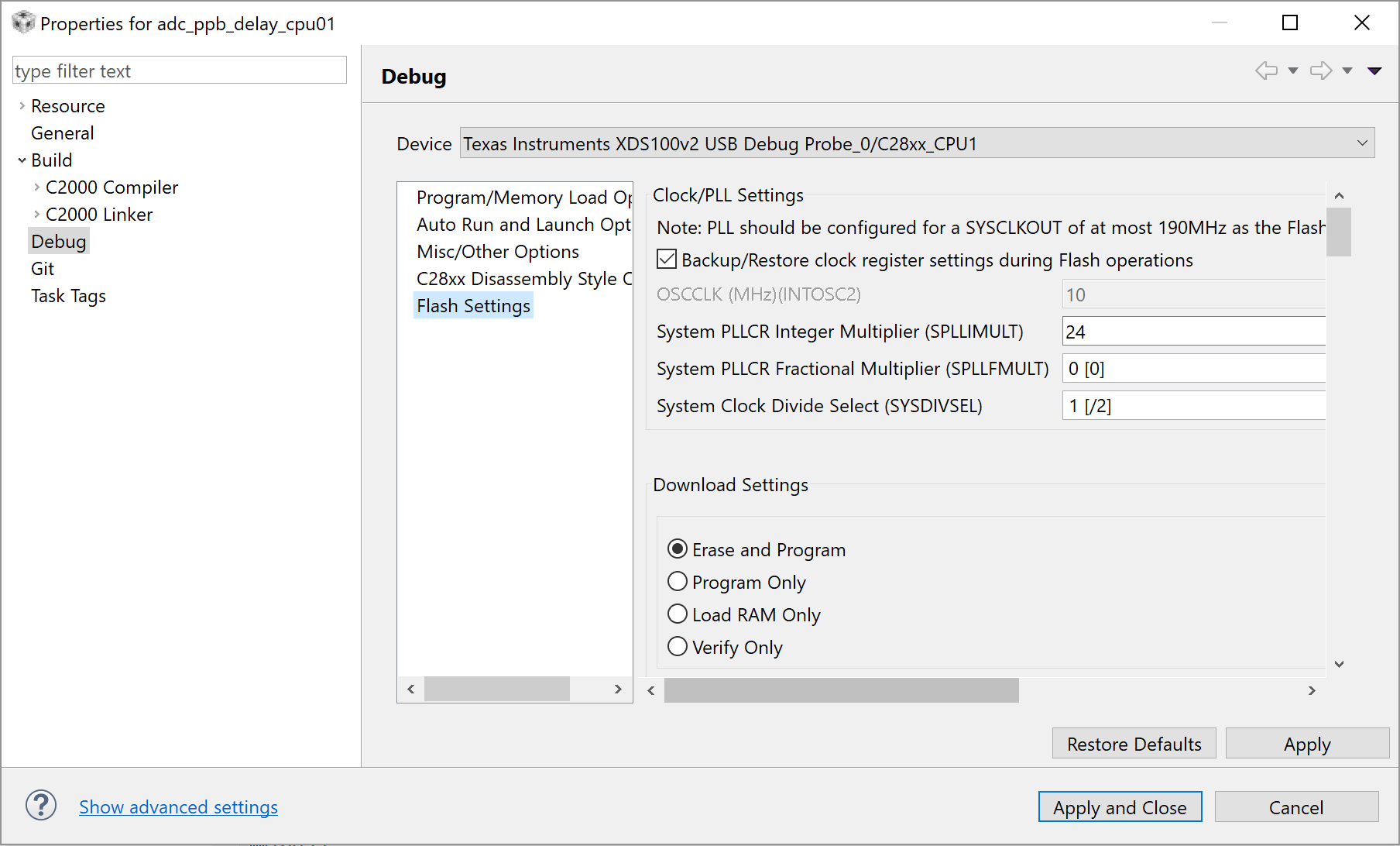

I find the setting of a F28075 example project is shown below. Should I use the same setting?

Thanks

Sheldon

0 Vamsi Gudivada over 7 years ago in reply to Sheldon He

TI__Guru* 87155 points

Sheldon,

Your CCS PLL config for this device looks ok. Please pass it on to customer.
General note: On-Chip Flash plugin in CCS should be invoked via CCS Debug view -> Tools menu -> On-Chip Flash.

Thanks and regards,
Vamsi

0 Vamsi Gudivada over 7 years ago in reply to Vamsi Gudivada

TI__Guru* 87155 points

Sheldon,

Any update from customer?

Thanks and regards,
Vamsi

0 Sheldon He over 7 years ago in reply to Vamsi Gudivada

TI__Expert 8585 points

Hi Vamsi,

I will update the result once I get from customer.

Thanks

Sheldon
