LAUNCHXL-F28379D: Input Under shoot and Over shoot capability

Thilesh De Silva

Hello Every One,

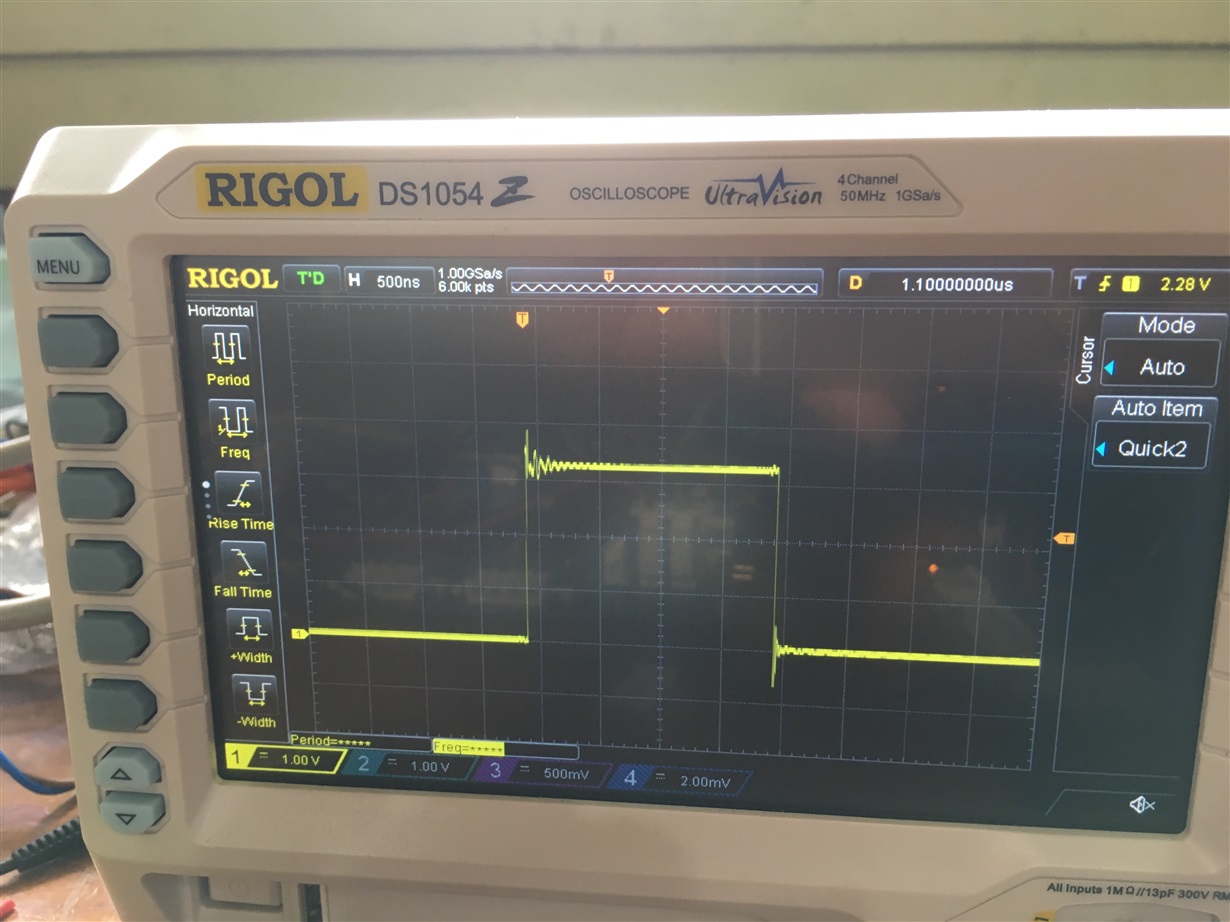

I'm Using LAUNCHXL-F28379D for my application. I have a digital Input to the Launchxl which is indicated in yellow color in the attached two images (Oscilloscope images). Please tell me if this much of an Under shoot is a problem or not. ?
peak under shoot is about 620mV and time taken to come back to zero is 10nS as in image 2.

Thank you and best regards,

Thilesh De Silva.

over 7 years ago

0 Nirav Ginwala over 7 years ago

TI__Genius 15385 points

Hi Thilesh,

What kind of digital input you are referring to here, is it a GPIO?

Regards,
Nirav

0 Thilesh De Silva over 7 years ago in reply to Nirav Ginwala

Intellectual 390 points

Hi Nirav,

Actually i have 8 signals. All of them are fed to GPIO pins. (GPIO 08,09,14,15,95,139,56 and 97).

thank you and best regards,
Thilesh

0 Nirav Ginwala over 7 years ago in reply to Thilesh De Silva

TI__Genius 15385 points

Hi Thilesh,

Minimum VIL spec on the GPIOs is VSS-0.3V, so roughly about ~300mV is what is recommended by TI, anything below that is not guaranteed.

Regards,
Nirav

0 Thilesh De Silva over 7 years ago in reply to Nirav Ginwala

Intellectual 390 points

Hi Nirav,

Thank you for replying me. I saw the absolute maximum ratings and thought -0.3V is defined for continuous operations and for this kind of transients there could be more room.

thank you and best regards,
Thilesh De Silva

0 Nirav Ginwala over 7 years ago in reply to Thilesh De Silva

TI__Genius 15385 points

Hi Thilesh,

Yes, you may be ok with this behavior, but we have not validated such transients on Si so we cannot guarantee.

Let me know if you need any further assistance, if not can you please close this thread.

Thanks,

Nirav
