TMS320F28377S: GPIO Pin identification

Juan Antonio Ocampo Wilches

Part Number: TMS320F28377S
Other Parts Discussed in Thread: C2000WARE

Good morning,

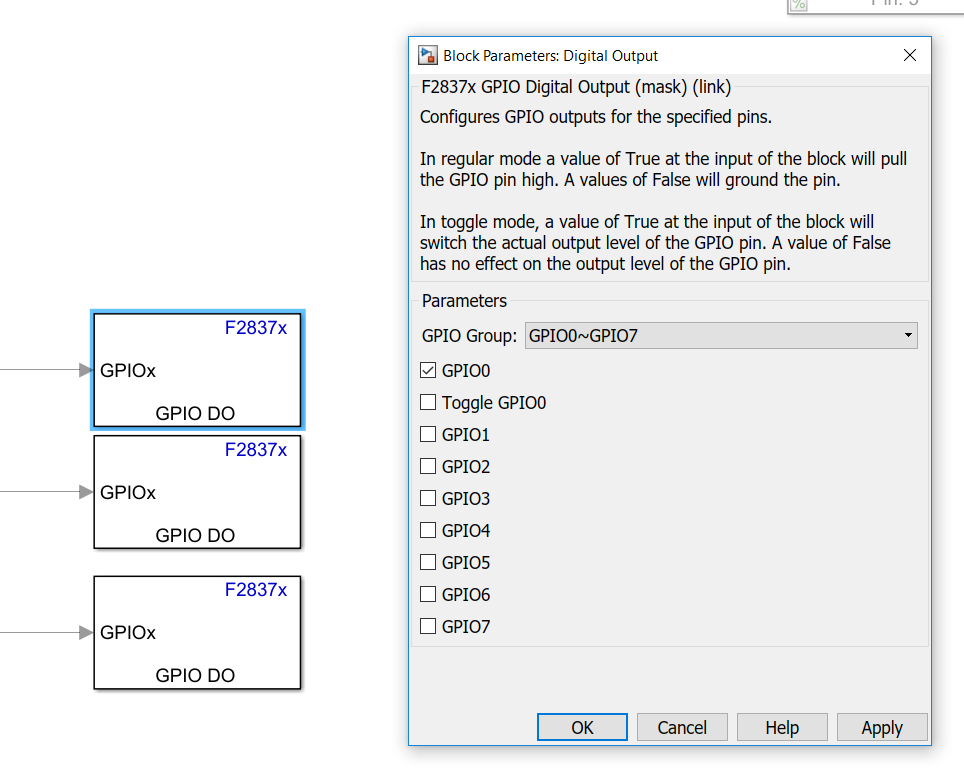

I´m new using TI microcontrollers, I just want to know how i can identify or were to read which pins of the board correspond to de GPIO pins speciffied in the simulink digital output block? it ask for a GPIO group but which of them correspond to de J4 o J2 buses of the mainboard?

Thank,

Juan Antonio

over 6 years ago

0 Yanming Luo over 6 years ago

TI__Guru** 114350 points

Do you mean the Simulink block in Matlab? And what board are you using?

0 Juan Antonio Ocampo Wilches over 6 years ago in reply to Yanming Luo

Prodigy 60 points

I´m using the TMS320F28377S board, and i just want to know which is the pins GPIO0 that i specify in simulink and which pin is in the board

0 Todd Anderson78572 over 6 years ago in reply to Juan Antonio Ocampo Wilches

Guru 14640 points

Looks like GPIO0 is not one of those brought to a pin on the board:

www.ti.com/.../sprui26.pdf

0 Yanming Luo over 6 years ago in reply to Juan Antonio Ocampo Wilches

TI__Guru** 114350 points

You might download the C2000ware, and install it, you could find the schematic of this board, and then you should know the GPIO assignment on this board, to set it in Simulink per your requirement.

www.ti.com/.../c2000ware

\ti\c2000\C2000Ware_1_00_06_00\boards\LaunchPads\LAUNCHXL_F28377S

0 Todd Anderson78572 over 6 years ago in reply to Todd Anderson78572

Guru 14640 points

Another reference: www.ti.com/.../sprui25c.pdf
See page 6

0 Yanming Luo over 6 years ago in reply to Todd Anderson78572

TI__Guru** 114350 points

I haven’t heard from you for a week, so I’m assuming you were able to resolve your issue. If this isn’t the case, please click the "This did NOT resolve my issue" button and reply to this thread with more information. If this thread locks, please click the "Ask a related question" button and in the new thread describe the current status of your issue and any additional details you may have to assist us in helping to solve your issues.

0 Juan Antonio Ocampo Wilches over 6 years ago in reply to Yanming Luo

Prodigy 60 points

thanks for the help it solve my problem, i think that i answer but it looks like not,

Thanks again for your fast responce
