CCS/TMDSHVMTRPFCKIT: TMDSHVMTRPFCKIT

Dmitriy Dorokhov

Prodigy 120 points

Part Number: TMDSHVMTRPFCKIT
Other Parts Discussed in Thread: CONTROLSUITE

Tool/software: Code Composer Studio

Hello Motor control team!

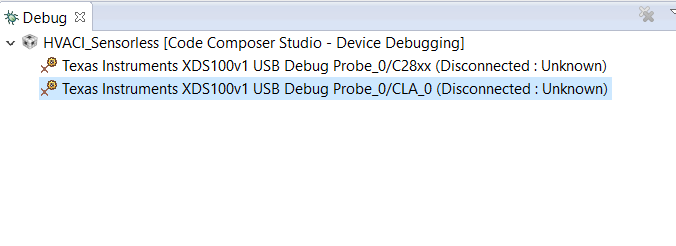

No connection to Texas Instruments XDS100v1 USB Emulator. How can this be fixed?

Motor parameters:

Induction motor
Power: 180W
Frequency: 50Hz
Voltage (delta / star): 127 / 220V
Rated current: 1.09 A
The ratio of starting current to rated: 1.89 / 1.09 A
Power factor (cos phi): 0.68

Rotation frequency: 1372 rpm

over 6 years ago

0 Dmitriy Dorokhov over 6 years ago

Prodigy 120 points

0 Dmitriy Dorokhov over 6 years ago in reply to Dmitriy Dorokhov

Prodigy 120 points

0 Yanming Luo over 6 years ago in reply to Dmitriy Dorokhov

TI__Guru** 116570 points

Which controlCard are you using? Are you using the on-board emulator on the High Voltage Kit or the emulator on the controlCard?

Are you the first time to use the kit and the emulator can't be connected? Or you have successfully connected the emulator before, but it can't work after you try something?
