CCS/TMDSCNCD280049C: Flash API download issue

Kevin Chen31
Prodigy 230 points

Part Number: TMDSCNCD280049C
Other Parts Discussed in Thread: C2000WARE, UNIFLASH

Tool/software: Code Composer Studio

Hi C2000 experts,

I would like to use flash api to implement a flash download function through UART (9600 baudrate).

The data format follows the "sci flash kernel", and all the flash download functions I used that derives from

"..\c2000ware\driverlib\f28004x\examples\flash" example code.

I also create a test file "led_ex1_blinky.txt" to test this flash function.

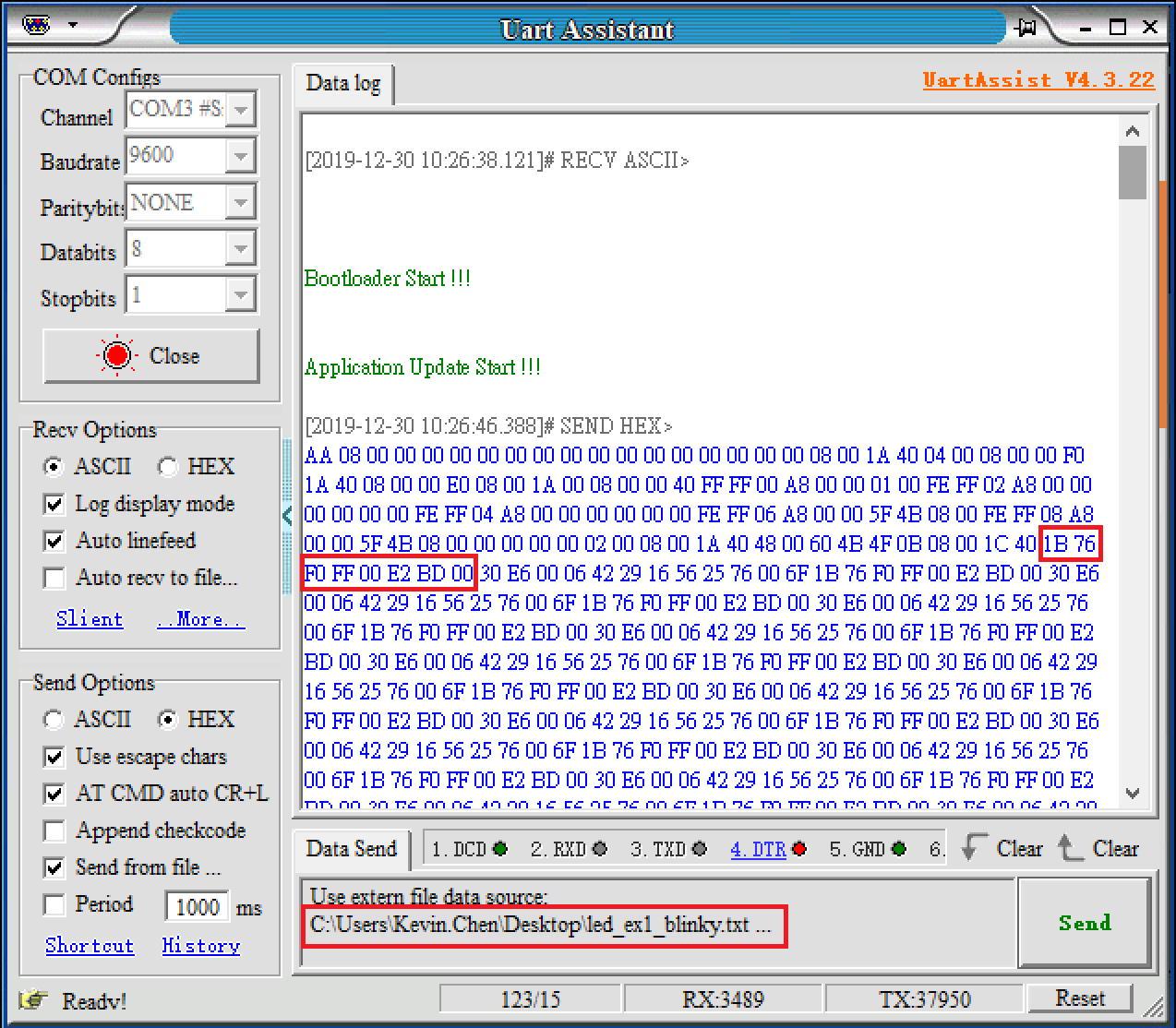

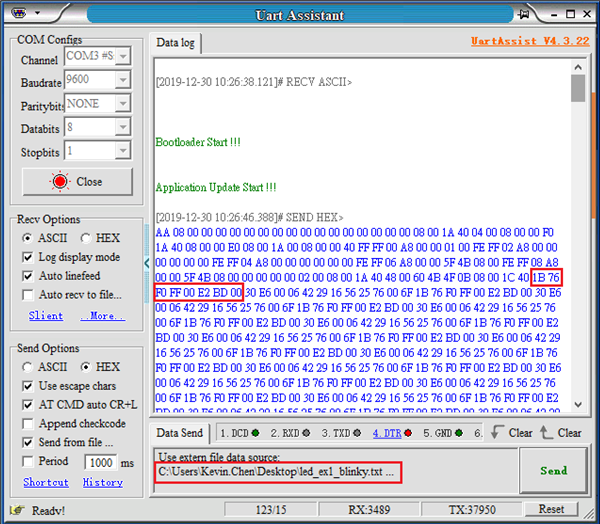

However, when I test my code, I found an error returned from "Fapi_doVerify()", but not every time.

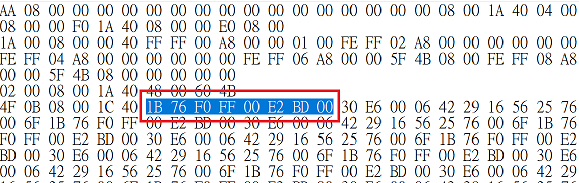

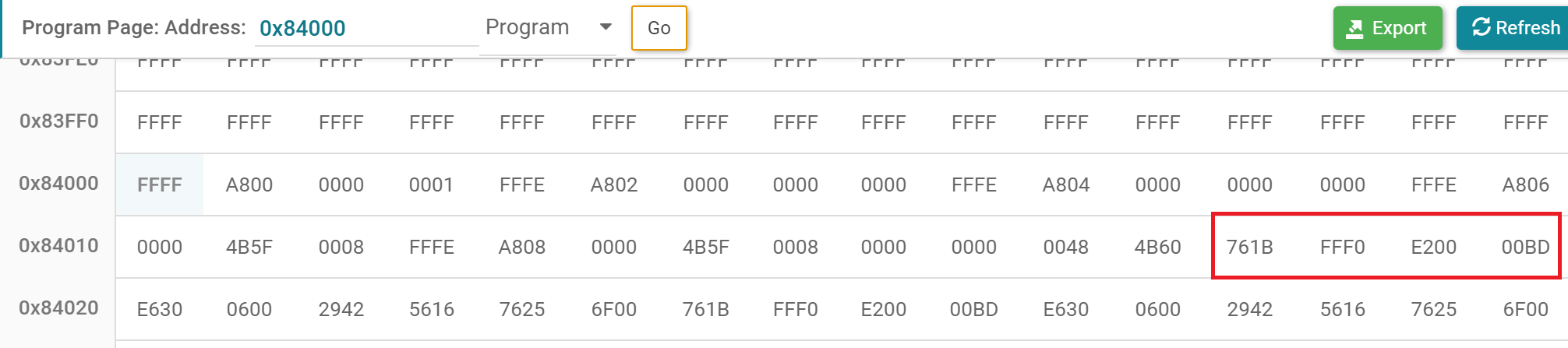

Below is the source file, and I check the flash contents using UniFlash after I downloaded.

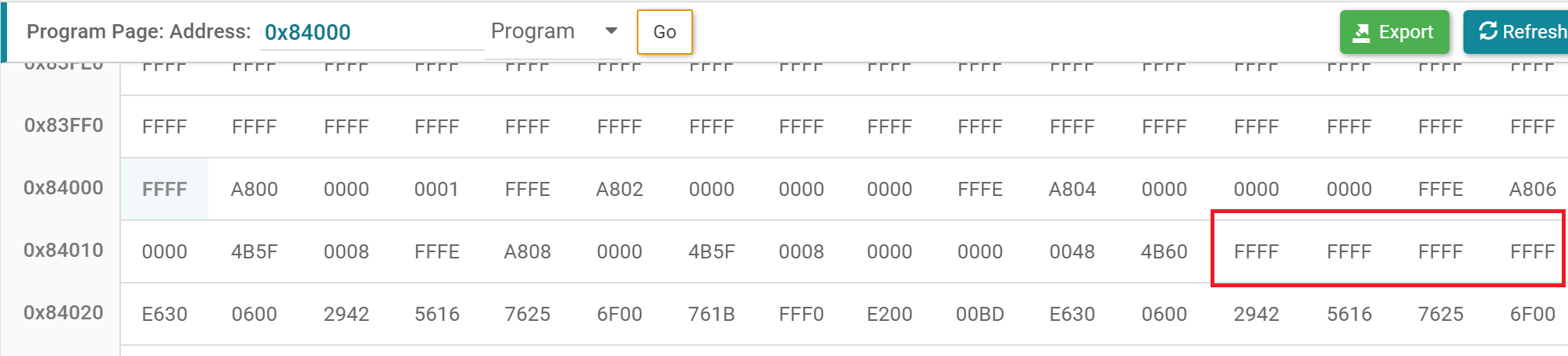

The Fapi_doVerify() always return fail at address 0x8401C, but I can download the code using CCS through JTAG without error.



I am not sure if I miss anything or not?

May I have your help about this?

Please check the project and source file.

Thanks,

FlashTest.zip
