LAUNCHXL-F28379D: SPRABT6.pdf Missing transfer function

Hello,

I'm just reading SPRABT6.pdf application note as a title Different Control Mode for Synchronization Buck or Boost Topology by Using C2000™ MCU.

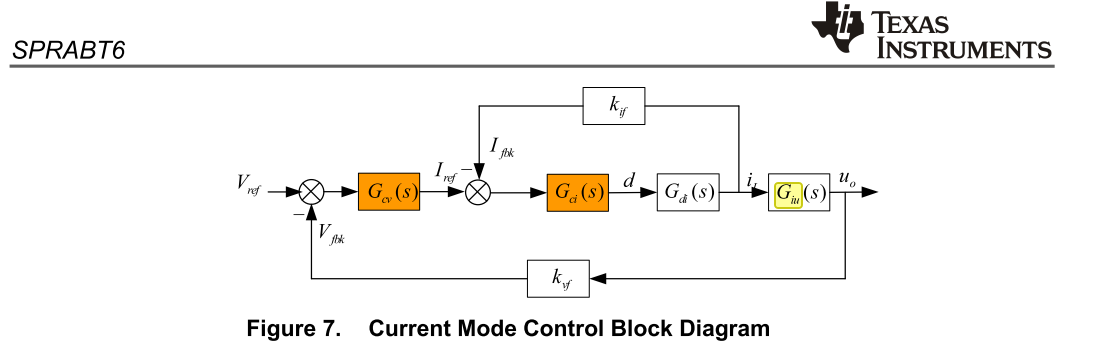

I couldn't find Giu(s) transfer function as shown below.

Could you please guide me?

over 6 years ago

0 Shamim Choudhury over 6 years ago

TI__Genius 12035 points

As you can see Gui is the gain Uo/iL. In buck converter this is nothing but the transfer function of output capacitance in parallel to load resistance. Because inductor current iL flows through that parallel branch to generate Uo.

Shamim

0 gG over 6 years ago in reply to Shamim Choudhury

Intellectual 915 points

Hello,

Is there any updated version of this application note?

0 Shamim Choudhury over 6 years ago in reply to gG

TI__Genius 12035 points

No. This is the last update.

Shamim
