Compiler/TMS320F28335: ADC-PWM Synchronization via ADC Interrupt

RATIK MITTAL

Tool/software: TI C/C++ Compiler

Hi,

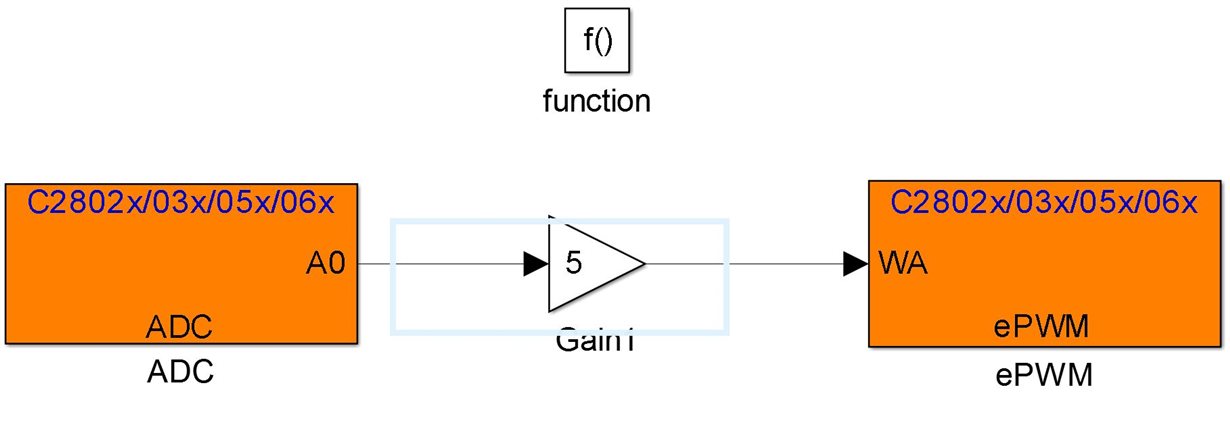

I'm using Embedded Coder software package support to run TMS320F28335. So, I'm uing the example "ADC-PWM Synchronization via ADC Interrupt". I've one question regarding the model:-

In the ADC-PWM subsystem, there is a gain of "5", what is the significance of this gain ?

Also, where can I find a more detailed explanation of this particular model.

P.S. I'm using MATLAB 2015a

Thanks in advance.

Be safe

Ratik

over 6 years ago

0 Santosh Jha over 6 years ago

TI__Guru 50611 points

Hi Ratik,

Checking with MathWorks team and will get back to you soon.

0 RATIK MITTAL over 6 years ago in reply to Santosh Jha

Prodigy 170 points

Hi Santosh,

Thanks !!

0 venkatesh chilapur over 6 years ago

Mastermind 6460 points

Hi,

The ePWM timer period is 20480.

Considering the full scale ADC value from 0-4095, multiplying with 5 gives the appropriate modulation to PWM.

Example:

If ADC value is 2048, Multiply by 5, gives 2048 * 5 = 10240.

This is half of 20480.

Hope you got an idea!

0 Santosh Jha over 6 years ago in reply to venkatesh chilapur

TI__Guru 50611 points

Ratik,

Are you able to resolve the issue?
