CCS: On the 28379d routine burning of the inverter board bootxl-3phganinv

user6104966

Other Parts Discussed in Thread: C2000WARE, TIDM-02007

Tool/software: Code Composer Studio

Add routine in CCS: c2000ware_ MotorControl_ SDK_ 3_ 00_ 00_ 00/solutions/boostxl_ 3phganinv / f2837x, error in burning process, how to add. Out files of CPU 1 and CPU 2?? What are the steps?

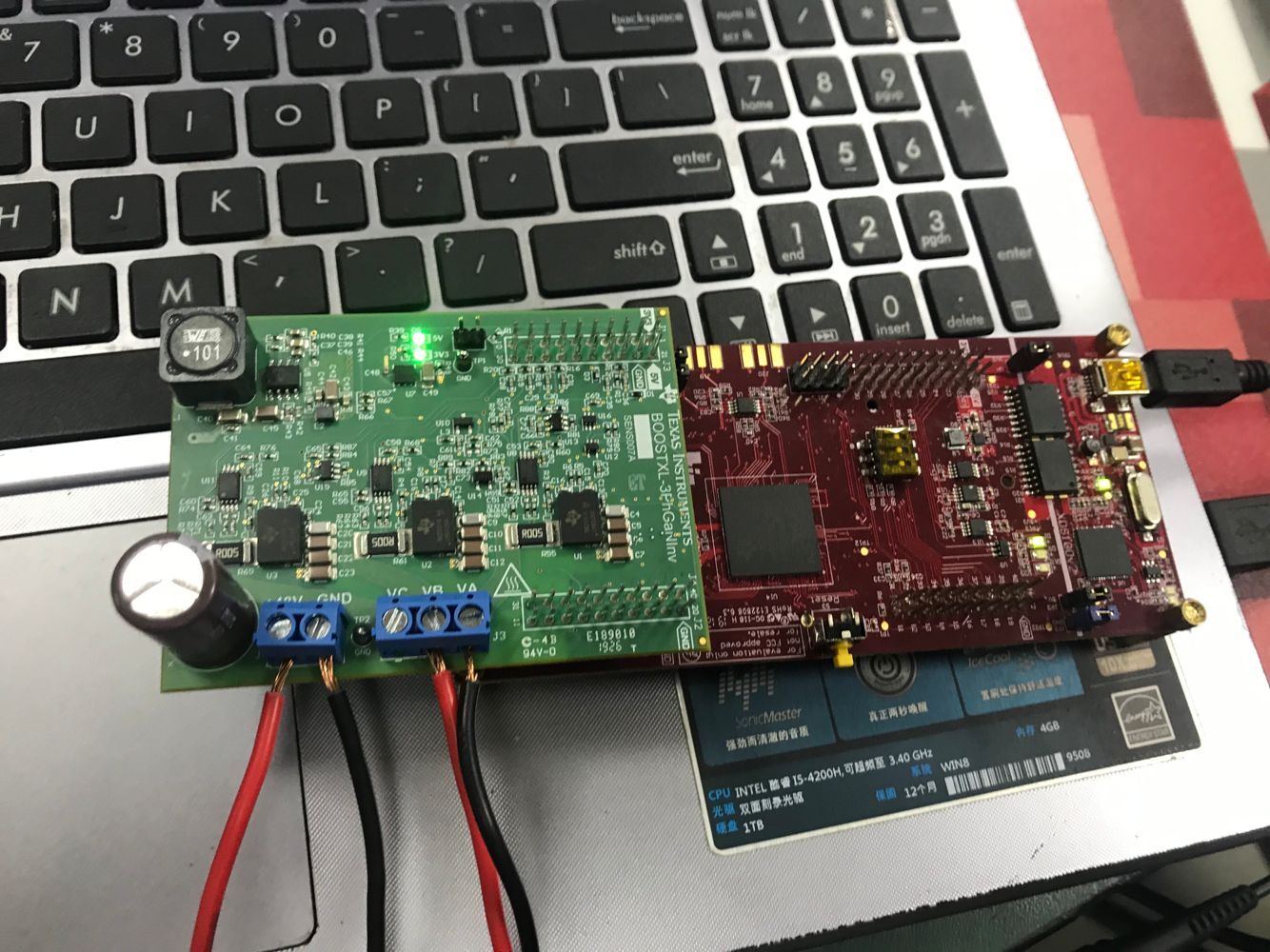

Before, I programmed 28379d to output PWM wave, which is connected with bootxl-3phganinv in the correct way, but VA, VB and VC are not output. Now there are problems in the test routine. What are the operation steps of the inverter board? What might be the cause of my problem.

over 5 years ago

0 Yanming Luo over 5 years ago

TI__Guru** 115500 points

You might refer to the reference design TIDM-02007 and have a look at the guide and application report accordingly that should have answers to your questions.

https://www.ti.com/tool/TIDM-02007

You can check the PWM output on the connectors of boostxl_ 3phganinv or F2837x launchPad. The dual-motor control project is just using the CPU1.

0 user6104966 over 5 years ago in reply to Yanming Luo

Prodigy 180 points

I just tested this routine again and loaded the. Out file into CPU 1, but the program still didn't burn in. And the following error occurred: "Trouble Removing Breakpoint with the Action "Finish Auto Run" at 0xdb74: (Error -1066 @ 0xDB74) Unable to set/clear requested breakpoint. Verify that the breakpoint address is in valid memory. (Emulation package 8.1.0.00005)"

0 user6104966 over 5 years ago in reply to Yanming Luo

Prodigy 180 points

I've seen design TIDM-02007, but the problem still hasn't been solved.If you have f28379d and boost XL_ 3phganinv, can you test the routine "The dual-motor control project" for me? I can't get the output of VA, VB, VC all the time.

0 Genatco over 5 years ago in reply to user6104966

Guru 55913 points

Hi user6104966,

Have you click debug view tab, add break points page to see if there are any remaining? You can also configure the XDS110 project debug profile to clear all break points prior to launching the application.

0 user6304151 over 5 years ago in reply to Yanming Luo

Prodigy 40 points

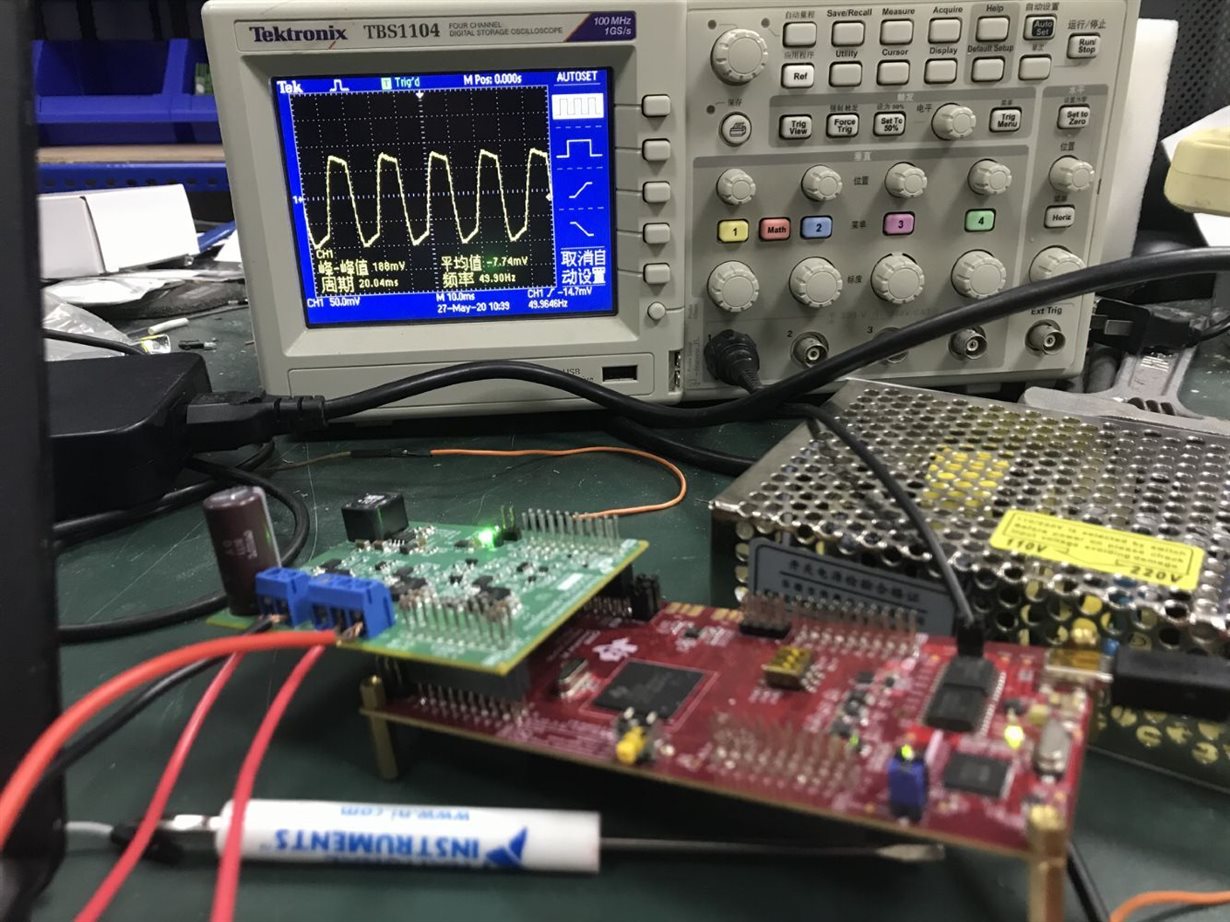

I also encountered the same problem before. I felt that the program was not written in. You said that this dual motor routine only uses CPU 1. My operation is as follows: click "run" and load the generated. Out file into CPU 1, but I can't get sine wave when testing VA, VB and VC with oscilloscope. I look forward to your answer.

0 user6104966 over 5 years ago in reply to Genatco

Prodigy 180 points

Thank you for your reply.I made the following settings, but they still don't work.I want to test this routine to get a sine wave.

0 Yanming Luo over 5 years ago in reply to user6104966

TI__Guru** 115500 points

I guess that you should have already loaded the code into the controller and the code successfully per the thread you posted.

https://e2e.ti.com/support/microcontrollers/c2000/f/171/p/911885/3370029#3370029

Follow the steps in the TID guide and application notes, you might remove the breakpoints by clicking "View->Breakpoints->Remove All Breakpoints" if you met the warning message as you mentioned above, and then reload the code again.

Don't need to enable the "Silicon Real-Time Mode" in all build levels.
