CCS/TIDM-1000: three-phase Vienna：Pin correspondence

Libra_V

Part Number: TIDM-1000
Other Parts Discussed in Thread: TMDSCNCD28379D, C2000WARE

Tool/software: Code Composer Studio

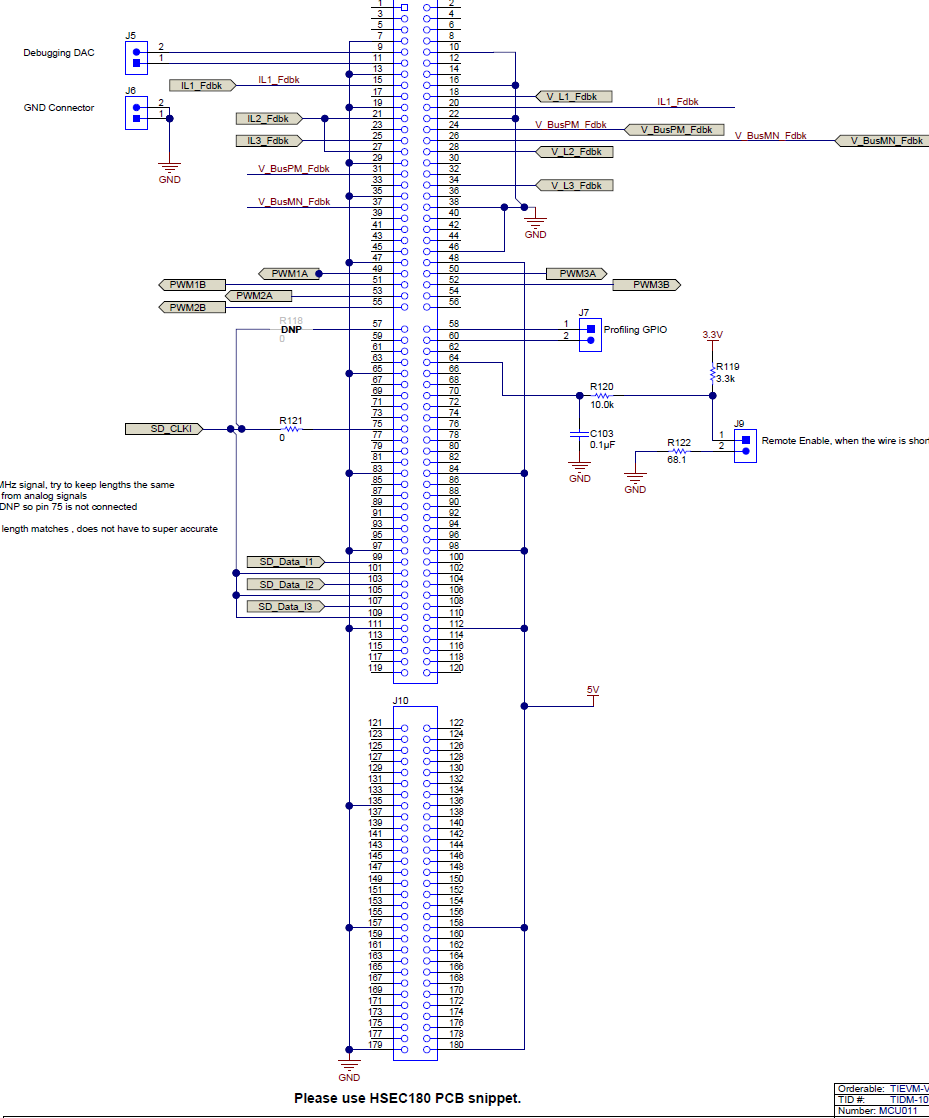

I want to ask, how do these pins correspond, such as v_ L1_ Fdbk corresponds to pin 18, which ADC port is corresponding to f28379d？

Is there any related pin file?

0 KARTHIKEYAN RAJAMANICKAM over 5 years ago

Hi,

One of our experts will get back to you on this, mostly by Monday(6th July) due to US holiday.

0 Libra_V over 5 years ago in reply to KARTHIKEYAN RAJAMANICKAM

Excuse me, has my problem been solved?

Looking forward to your reply

best wish

0 Chen Jiang ti over 5 years ago in reply to Libra_V

Yes, you could refer to TMDSCNCD28377D_100DIMmap_R1_3.pdf and TMDSCNCD28377D_180cCARD_pinout_R1_3.pdf

in C:\ti\c2000\C2000Ware_DigitalPower_SDK_3_00_01_00\c2000ware\boards\controlCARDs\TMDSCNCD28379D\R1_3

Regards,

Chen
