CCS/LAUNCHXL-F28069M: Does InstaSpin use CLA resources

richard payne

Part Number: LAUNCHXL-F28069M
Other Parts Discussed in Thread: MOTORWARE, DRV8305, CONTROLSUITE, C2000WARE

Tool/software: Code Composer Studio

I was wondering Instasin Motion use CLA resources. I have reviewed the SPRUHJ0B and found no reference for using CLA resources.

In this case, I can assign other resources into CLA such as resolver task (See TMDSRSLVR_v1.0 under Resolver_f28035_CLA), in such context the CPU focus on the motor task at 20KHz ISR loop rate while the CLA focus on resolver task at 80Khz or 160KHz PWM rate with ADC12 sample rate (10Khz).

Is there a restriction in sharing ADC12 between CPU and CLA at the same time?

How to export angle results from CLA into Instaspin code.

What do you think?

Added: One approach the ADC12 interrupt can be driven by ISR (conversion done) within COS where it which run the CLA code, or perhaps run both ISR in CPU and CLA together?, how to make that work?

over 5 years ago

0 richard payne over 5 years ago

Genius 4640 points

One approach the ADC12 interrupt can be driven by ISR (conversion done) within COS where it which run the CLA code, or perhaps run both ISR in CPU and CLA together?, how to make that work?

0 Han Zhang6 over 5 years ago in reply to richard payne

TI__Expert 7335 points

The InstaSPIN Motion does not use CLA in F28069M. You can dedicate the CLA to resolver decoding.

The motor control ISR can be triggered by the main output PWM and run on C28x core.

For the resolver software, you can trigger a CLA task from the excitation PWM and run the CLA version of resolver software.

CLA can pass the resolver decoding data to CPU through regular LS ram or utilizing the dedicated CLA-to-CPU Message RAM.

Please let me know if you have further question.

0 richard payne over 5 years ago in reply to Han Zhang6

Genius 4640 points

Thank you for the reply, I just returned from vacation.

What instrument I can use (from CCS10) to measure resource consumption in the performance of CLA and C28x and if possible peripheral use.

0 Han Zhang6 over 5 years ago in reply to richard payne

TI__Expert 7335 points

Richard,

One easy way to measure cycle consumption of your program we normally use is to setup a CPU timer, let it count down from its maximum value. Record the counter value before and after running the code. The difference will roughly the cycle taken to run the control program. Keep in mind there may be a couple of cycle difference caused by compiler optimization.

For CLA program, since CLA doesn't have access to CPU timer, you can use a ePWM module instead.

Han

0 richard payne over 5 years ago in reply to Han Zhang6

Genius 4640 points

I have copied/integrate the demo code in Resolver_f28035_CLA from TMDSRSLVR_v1.0 into my based code with F28069M device

I have read the Resolver_sw_library.pdf and noted the F28069M use float than fixed, so I copied over the Resolver_Lib_CLA_float.lib into local folder with include setup for compiler and linker.

I get this compiler error and warning.

I note there no demo code for F28069_CLA due to difference in FLOAT and FIXED as in F28035_CLA, I'm not sure what to change in Resolver_Cla.h

I can send this code via private file. I'm kinda stuck there for F28069M.

==========================================================================Error.

Description Resource Path Location Type
#10010 errors encountered during linking; "F28069M_RVP_1J_CLA.out" not F28069M_RVP_1J_CLA C/C++ Problem
<a href="file:/C:/ti/ccs1000/ccs/tools/compiler/dmed/HTML/16008.html">#16008-D</a> file F28069M_RVP_1J_CLA C/C++ Problem
gmake: *** [all] Error 2 F28069M_RVP_1J_CLA C/C++ Problem
gmake[1]: *** [F28069M_RVP_1J_CLA.out] Error 1 F28069M_RVP_1J_CLA C/C++ Problem
#10461-D Invalid to call CLA function "_init_resolver_CLA" defined in F28069M_RVP_1J_CLA C/C++ Problem
#10461-D Invalid to call CLA function "_resolver_algo_CLA" defined in F28069M_RVP_1J_CLA C/C++ Problem

0 Han Zhang6 over 5 years ago in reply to richard payne

TI__Expert 7335 points

CLA supports floating point on all C2000 devices. The difference on FPU support is only in C28x CPU.

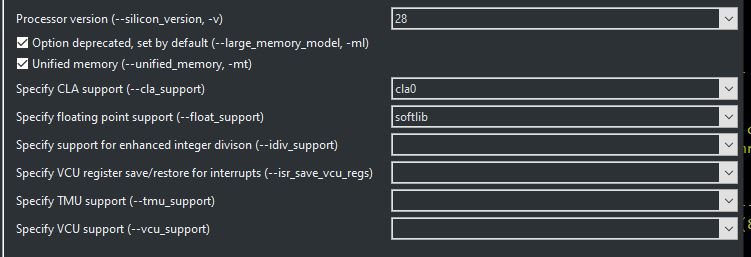

Please check if you have enabled CLA and FPU support in Processor Options tab in your project properties setting.

For more help on debugging the code, you will need to share the project file with us. You can reach out to your TI local support team on sharing the code if you are not willing to share it in public forum. Thanks.

Han

0 richard payne over 5 years ago in reply to Han Zhang6

Genius 4640 points

It the same as F28035_CLA demo code.

How to reach out to TI Support Team?, I just send friendship link

0 Han Zhang6 over 5 years ago in reply to richard payne

TI__Expert 7335 points

I accepted your request.

For floating point support, please try to select FPU32 instead.

0 richard payne over 5 years ago in reply to Han Zhang6

Genius 4640 points
