TMS320F28379D: TIDA-01606 Software Guide

TMS320F28379D: TIDA-01606 Schematic mistake

Jalal Dadkhah
Prodigy 90 points

Part Number: TMS320F28379D

Dear Support team,

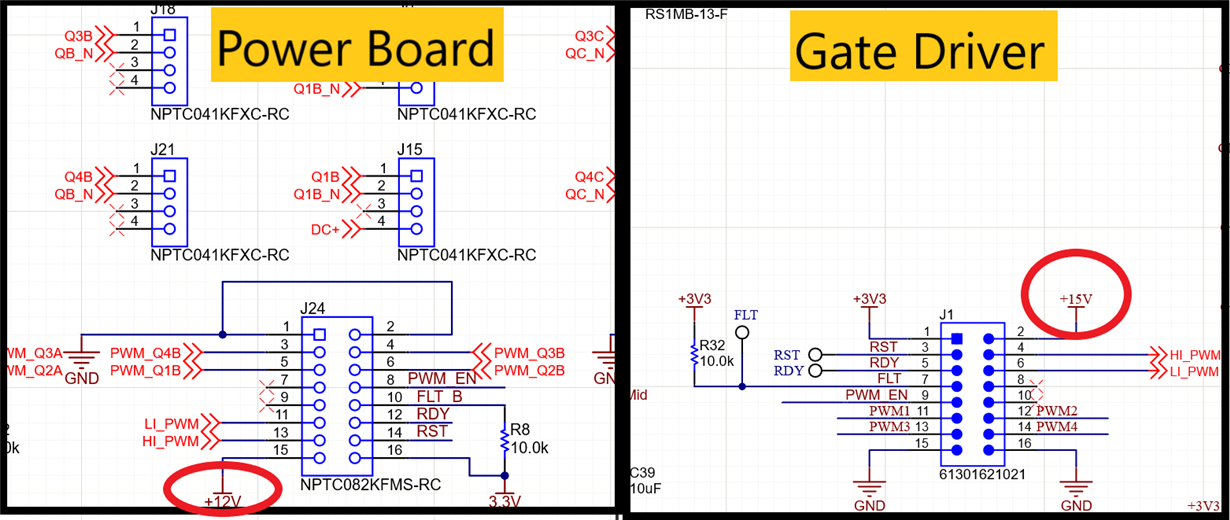

I have come across a strange connection in TIDA-01606 schematic. In fact, the gate driver is supplied with +12V from the power board. However, in the schematic of the gate driver, the same pin is labeled with +15V. To make it clear, the figure of the schematics is attached. I would be grateful if you could clarify the point.

Regards,

Jalal
