TMS320F280049: Strategy to obtain the phsae difference of two periodic square wave using ECAP on F280049

Sheldon He

Hi expert,

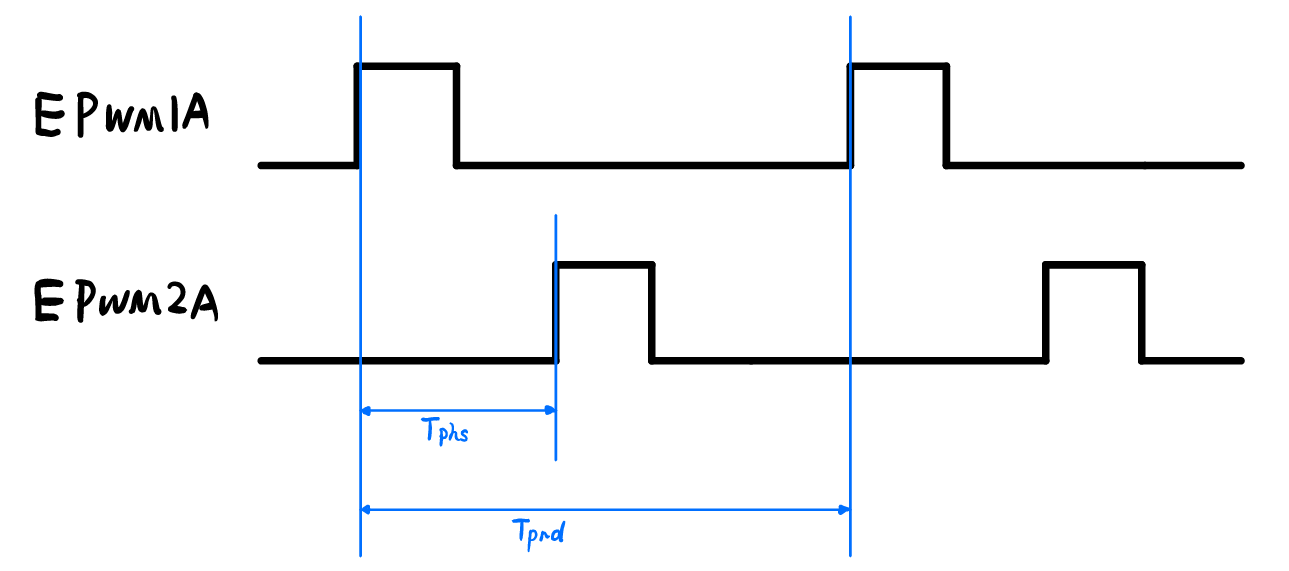

As shown in the picture, there are two periodic suqare wave on EPWM1A and EPWM2A. Now, I'd like to get Tphs in the most cost-effective way. Could you provide me with the strategy to do this using an ECAP?

Thanks

Sheldon

over 6 years ago

0 Frank Ankapong over 6 years ago

TI__Mastermind 28275 points

Hi Sheldon,

This should be pretty simple to achieve. You will need to configure 2 ECAPs to capture EPWM1A and EPWM2A in absolute mode. You then need to synchronize the 2 ECAPs so both their counters start counting from the same number. You can use software sync force for this. You then subtract the timestamps to get the numbers you need. Let us know if this is not clear.

0 Urko Criado over 6 years ago in reply to Frank Ankapong

Prodigy 70 points

Hi Frank,

I came from this thread with a similar issue. I am trying to configure the eCAP modules with simulink in absolute mode, then I need to synchronize both eCAPs but I am afraid I am not very sure how to do it. Is there any example of these kind of configurations/synchronizations?

Thank you in advance,

Regards,

Urko.

0 Frank Ankapong over 6 years ago in reply to Urko Criado

TI__Mastermind 28275 points

Hi Urko,

Please keep your questions in the thread you created as this thread is closed. I'll reply in your thread.
