LP-MSPM0G3507: BSL

Nian Yang

Prodigy 50 points

Part Number: LP-MSPM0G3507

Hi TI experts,

I can use MSPM0 Bootloader GUI to update launchpad board.

Is this LP-MSPM0G3507 board bootloader by factory made?

If I buy MSPM0GXXXX(only IC), is there still a bootloader?

Thanks for your time and feedback.

Best Regards,

Nian

over 2 years ago

+1 Sal Ye over 2 years ago

TI__Mastermind 24485 points

Hi Nian,

Yes, there is a bootloader in ROM which is provided by TI in factory production. And customer can use the default ROM bsl if only buy the IC chip.

Meanwhile, if you want to use your own bootloader, you can use the secondary bsl in flash, the details please refer to TRM and SDK code example.

B.R.

Sal

0 Nian Yang over 2 years ago in reply to Sal Ye

Prodigy 50 points

Hi Sal,

Thanks for your response and suggestion.

Could I config the other UART/I2C pin (not bsl default pin) when I using the secondary bsl?

BR,

Nian

0 Sal Ye over 2 years ago in reply to Nian Yang

TI__Mastermind 24485 points

Hi Nian,

Sure, it is configurable in secondary bsl.

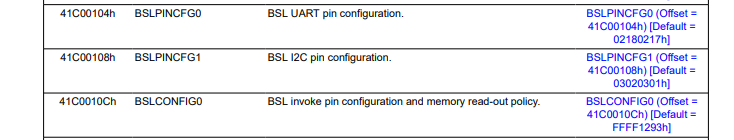

Also, it can be confiured via NONMAIN Flash for the default bsl provided by TI.

B.R.

Sal

0 Nian Yang over 2 years ago in reply to Sal Ye

Prodigy 50 points

Hi Sal,

The example of secondary bsl has write BCR and BSL.

How to use it to avoid the MCU being locked?

Because I had a bad experience which the MCU was locked up when I reconfigured and programmed it.

BTW, where can I get the information like the one you showed me? like a Technical Reference Manual?

BR,
Nian

+1 Sal Ye over 2 years ago in reply to Nian Yang

TI__Mastermind 24485 points

Hi Nian,

Nian Yang said:
How to use it to avoid the MCU being locked?

Only change this will not lock the MCU. Please refer to TRM chapter: The debug subsystem (DEBUGSS). (chapter 20 in L)

Nian Yang said:
BTW, where can I get the information like the one you showed me? like a Technical Reference Manual?

It is on TRM, chapter - The device architecture. (chapter1.4 in L)

The previous image is the screenshot of L series, but you can take it as reference, and then when G series released in ti.com, you can refer to it. (As for this two parts, L and G is similar.)

B.R.

Sal

0 Nian Yang over 2 years ago in reply to Sal Ye

Prodigy 50 points

Hi Sal,

Sorry that one more question.

The function "DL_SYSCTL_resetDevice(DL_SYSCTL_RESET_BOOTLOADER_ENTRY);" from bsl_software_invoke example.

This also requires a hardware invoke (push S1) when software back to bootloader.

If without the hardware invoke, the MCU will continue to application after reset.

There is the BSL configuration in SYSCFG.

If I disable it, is it possible ignore the hardware invoke? just software invoke.

BR,

Nian

+1 Sal Ye over 2 years ago in reply to Nian Yang

TI__Mastermind 24485 points

Hi Nian,

It will means that every time you enter the boot code, you will execute the bsl code.

However, everytime you power the device, it will run the boot code automatically.

Updated: this reply is incorrect.

B.R.

Sal

+1 Sal Ye over 2 years ago in reply to Nian Yang

TI__Mastermind 24485 points

Hi Nian,

An mistake about my clarification, updates below:

Nian Yang said:
If I disable it, is it possible ignore the hardware invoke? just software invoke.

Yes, you are correct, The device will ignore hardware invoke and only software invoke remained.

Sorry for the incorrect message.

B.R.

Sal

0 Nian Yang over 2 years ago in reply to Sal Ye

Prodigy 50 points

Hi Sal,

Thanks for your clarification.

I understand BSL clearly.

BR,
Nian
