TM4C123G Programming with Launch Pad

Murat Guder

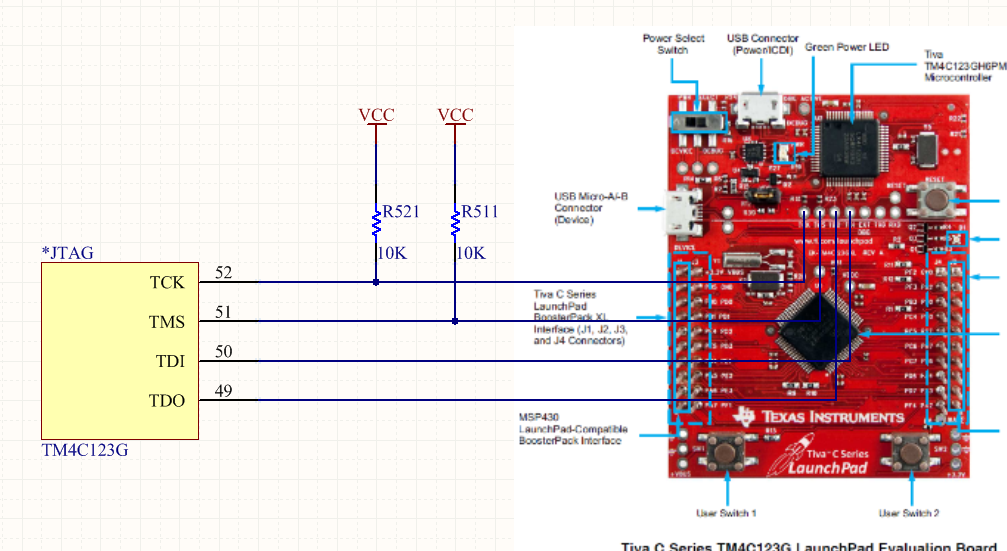

I am using TM4C123G microcontroller for my project and programme it with TM4C123G launch pad.I made jtag interface connection.I actually want to make sure the connections.Could you check connections and Can I use this connection for debugging?

Thank u.Have a nice day.

over 9 years ago

0 Amit Ashara over 9 years ago

TI__Guru**** 244400 points

Hello Murat,

You need to power down the TM4C123 on the Launchpad. Otherwise you would see bus contention on the TDO line. For this remove the only jumper on the Launchpad board.

Regards
Amit

0 Murat Guder over 9 years ago in reply to Amit Ashara

Prodigy 240 points

Hello Amit,
Thanks for your response.

0 Amit Ashara over 9 years ago in reply to Murat Guder

TI__Guru**** 244400 points

Hello Murat

I know that I have posted a snapshot of the board setting to make a Launchpad as a debugger for another TM4C12x device on the forum. May be a search of the forum will give the required information as well

Regards
Amit
