DRV8412: I need to calculate power dissipation for 1 ohm resistor connected between AGND & GND of DRV8412

moorthi s

Part Number: DRV8412

Hi ,
I need to calculate power dissipation for 1 ohm resistor connected between AGND & GND of DRV8412.
Pl provide below details.
Part number: DRV8412DDW

1.Current flow through 1 ohm resistor
2. VRG quiescent current ( Ground current).

Regards,
Moorthi sekar,
Baxter,
Design engg,
Ph:7019605896

over 4 years ago

0 Pablo Armet over 4 years ago

TI__Mastermind 37683 points

Hello Moorthi,

Thank you for posting to the forum. Today is a holiday here in the US so I will get back to you tomorrow.

0 Pablo Armet over 4 years ago in reply to Pablo Armet

TI__Mastermind 37683 points

Hi Moorthi,

I am still researching your question. Please give me another day to answer your question.

0 Pablo Armet over 4 years ago in reply to Pablo Armet

TI__Mastermind 37683 points

Hi Moorthi,

Apologies for the late response.

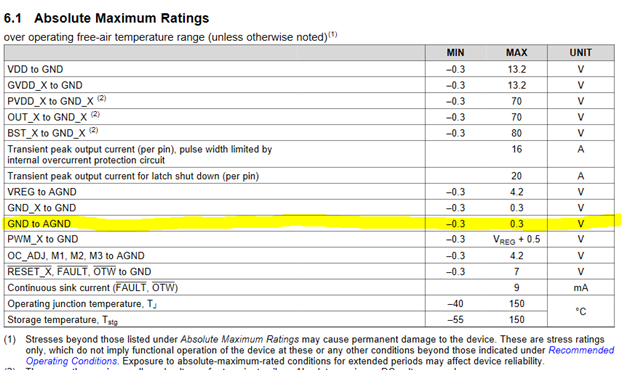

To calculate the max power dissipation for 1Ω resistor between AGND and GND, we have to look at the maximum GND to AGND voltage ratings. You can see on the table below that the MAX voltage is 0.3V between GND and AGND. So you can calculate the max power dissipation across the resistor to be around (0.3^2V/1Ω=0.09W). If the GND to AGND voltage stays withing the absolute operating range, the power dissipation of a 1Ω resistor should be less than 0.09W.
