DRV8804EVM: Mounting Holes Location

Art Mecina

Part Number: DRV8804EVM

Hello Guys,

Good day,

Looking at the gerber files for DRV8804EVM, We can see that the dimension of the mounting holes are 150mils in diameter but does not show the locations in reference to the edges of the board. Can we have this inforamtion?

Thanks and regards,

Art

over 4 years ago

0 Wang5577 over 4 years ago

TI__Guru 56650 points

Hello, Art:

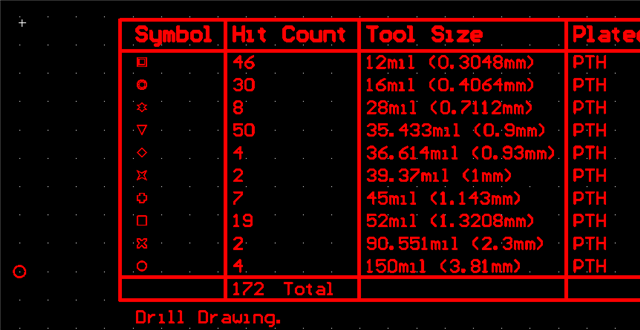

https://www.ti.com/lit/zip/slvc591 gives design the gerber file. In drill file (.gd1), you can see four 150mil drill hole on each corner.

Regards,

Wang Li

0 Art Mecina over 4 years ago in reply to Wang5577

TI__Genius 16655 points

Thanks for looking into this Wang.

However the gerber file does not show distance of this mounting hole from the edges of the board.

Thanks and regards,

Art

0 Ryan Kehr over 4 years ago in reply to Art Mecina

TI__Guru 55615 points

Wang will get back to you shortly on this.

0 Wang5577 over 4 years ago in reply to Ryan Kehr

TI__Guru 56650 points

Ryan,

Thanks,

Art,

I didn't find the location info in the gerber file. After searching the EVM original design file on the server, DRV8804EVM design should be a very old design without MD number or MDBU number. So, I didn't find the original design file.

Sorry, I think if you have the EVM, you can measure it.

Regards,

Wang
