DRV8323R: Overheating and showing multiple fault conditions

Rishabh Jain

Part Number: DRV8323R

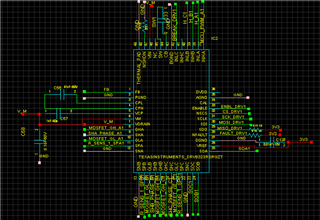

Hi, I am using DRV8323RS. I am facing some issues related to overheating when there is no load connected to it. Also, When I connect a motor and accelerate it few times from zero to 2800 RPM in one shot, then DRV released the motor and going in a fault condition with UVLO and overcurrent flag set. I am using a 24V battery to power the motors and also tried using an external power supply but the result is same. PFA, schematic and layout for the same.

Thanks,

over 4 years ago

0 Matt Hein over 4 years ago

TI__Mastermind 21805 points

Hello Rishabh,

The team will take a look on Monday and get back to you!

Thanks,

Matt

0 Andrew Liu over 4 years ago

TI__Mastermind 18981 points

Hi Rishabh,

Thanks for your patience - please see the below response to your e2e forum post:

We noticed that the DVDD pin for DRV8323RS in your schematic is currently not connected.

In the product datasheet, a 1uF capacitor should be at the DVDD pin
- Link: DRV832x 6 to 60-V Three-Phase Smart Gate Driver datasheet (Rev. C)

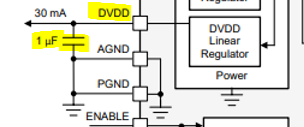

  - Specifically, refer to 'Figure 17. Block Diagram for DRV8323RS'
- The cap is important to stabilize the linear regulator's output voltage and help prevent oscillations
- We advise that you add this cap to DVDD to see if it resolves the issue, as DVDD is critical to device operation
