DRV8316: Fault=0

Dylan You

Part Number: DRV8316

Dear Teams,

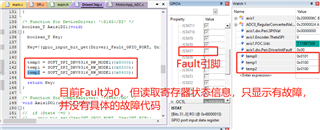

My customer is using DRV8316. They used SPI communication peripheral and able to read the register. However, they found there is fault=0. Based on the detail status information, they still not able to find out where the fault occurs. Could you help give some suggestions based on following picture?

Thanks!

Dylan

over 4 years ago

0 Matt Hein over 4 years ago

TI__Mastermind 21805 points

Hello Dylan,

Is this using the EVM or a customer board? If a customer board, can you share the schematic?

Thanks,

Matt

0 Dylan You over 4 years ago in reply to Matt Hein

TI__Intellectual 2630 points

Hi Hein,

Customer is using their own board. Please check the schematic diagram here:

Thanks!

Dylan

0 Michael Arrant over 4 years ago in reply to Dylan You

TI__Expert 3535 points

Hi Dylan,

Does the motor spin for some period of time before the fault occurs? I see that you are powering VM with 5V, the minimum voltage for this pin is 4.5V, so you are operating in the lower range of this device. Is it possible to increase this voltage?

Overall, the schematic looks good. Can you provide waveforms of the inputs and outputs of the device? I would like to see INHA, INLA, GHA, and GLA. Make sure that DRVOFF is pulled low and the device is awake (nSLEEP high).

Note: You may want to add a 0.1-µF, 6.3-V ceramic capacitor between the VREF and AGND pins.

Regards,

Michael

0 Matt Hein over 4 years ago in reply to Michael Arrant

TI__Mastermind 21805 points

Hello Dylan,

Do you need any further assistance on this thread?

Thanks,

Matt

0 Matt Hein over 3 years ago in reply to Matt Hein

TI__Mastermind 21805 points

Hi Dylan,

I'm going to go ahead and close this thread. If you have further questions, please click the "Ask a related question" button.

Thanks,

Matt
