DRV8800: About the UVCP

Kengo.Y

Part Number: DRV8800

Hi team,

I'd like to know about the UVCP detail.
What are the conditions under which the UVCP fault occurs?
Is this fault just a notification and will affect the DRV8800 behavior?

My customer has always the nFault output is low.
They checked the voltage of VCP that is 32.4V(VCC is 33V).

Sincerely.
Kengo.

over 4 years ago

0 Don Dapkus over 4 years ago

TI__Guru**** 189401 points

Hi, Kengo,

Our office is closed today for the US Labor Day holiday. We will be back at work tomorrow.

Best regards,

Don

0 Wang5577 over 4 years ago

TI__Guru 56650 points

Kengo,

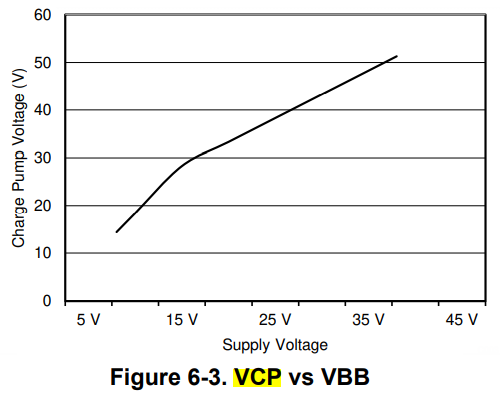

According to VCP voltage curve, if the VCP voltage is not higher than VBB more than 5~10V, the UVCP fault could occur. in UVCP fault condition, the outputs of the device are disabled.

How many boards do they build? Can they share the schematic?

Regards,

Wang Li

0 Kengo.Y over 4 years ago in reply to Wang5577

Guru 11165 points

Hi Wang,

Thank you for your reply.

I'll check with my customer on your comments.

By the way, my customer has always the nFault output is low.
Among the protection functions, what is the protection function that can move the motor.

Sincerely.
Kengo.

0 Ryan Kehr over 4 years ago in reply to Kengo.Y

TI__Guru 55605 points

Hello,

I am not sure I understand the question. Can you please clarify? This appears to be a charge pump fault. Please check around the charge pump for any errors in external components.

Regards,

Ryan
