DRV2605L-Q1: [DRV2605LTDGSRQ1] Circuit Review Request

MJ Jeon

Genius 5240 points

Part Number: DRV2605L-Q1

Hi, TI Support Team

A circuit review request has been received from a customer.

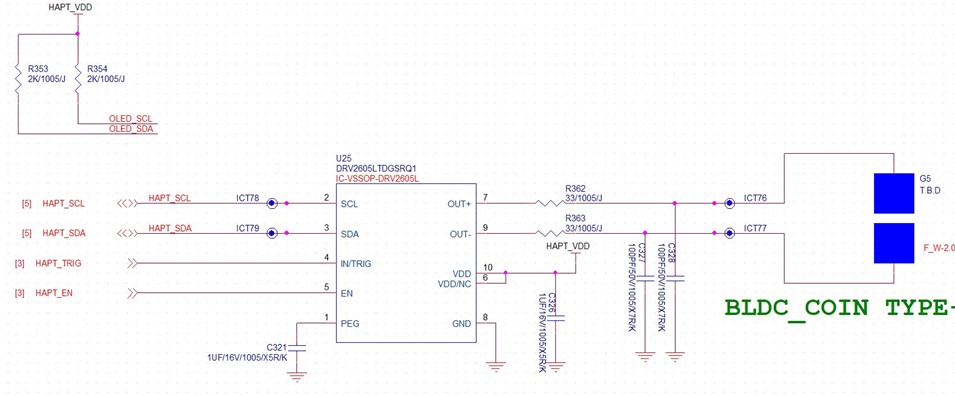

Please review the circuit below.

Please check the additional inquiries below.

If there is any EMI filter related data on the motor line, please share and guide it.

Thanks.

Regards,

over 3 years ago

0 Arthur Brown over 3 years ago

TI__Mastermind 20575 points

Hi MJ,

The schematic you shared looks good. I see no problems with it.

My one point is that for reducing EMI the customer may consider using a ferrite bead or small inductance in place of R362/363. this will also suppress EMI from the outputs, and it will not dissipate as much power as pure resistance.

Here is an App note I found that discusses LC filters for Class-D amplifiers https://www.ti.com.cn/cn/lit/an/sloa119b/sloa119b.pdf?ts=1639600667312&ref_url=https%253A%252F%252Fwww.google.com%252F

this app note is referencing an Audio amplifier but the concepts are the same

Regards,
Arthur
