DRV8432EVM: input/output pulse width question

[FAE] Andrew Wang

Part Number: DRV8432EVM

Hi Team,

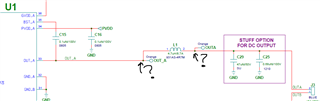

One quick question, when customer populated a 22uF (for DIP) , and 0.47uF (for SMD) on red circled location below on EVM, the output pulse width will be limited to 2uS, even input pulse width is more than 2uS.

Once these caps being removed, output pulse width will follow input correctly and can be longer than 2uS, no longer be limited, any idea?

Thanks!

Andrew

over 3 years ago

0 Pablo Armet over 3 years ago

TI__Mastermind 37683 points

Hi Andrew,

Most of our team is on holiday at the moment. We will reach out to you next week when everyone gets back to the office.

0 Ryan Kehr over 3 years ago in reply to Pablo Armet

TI__Guru 55615 points

Andrew,

Do you have any scope captures and can you point out where the output pulse width is being measured? Adding those capacitors just creates a low pass filter so you can get a DC output.

Finally, is there a load connected?

Regards,

Ryan

0 Pablo Armet over 3 years ago in reply to Ryan Kehr

TI__Mastermind 37683 points

Hi Andrew,

Are there any updates? It's been almost a month and we have not heard back from you. I will close this thread for now but you can reply back if you need further assistance
