MCF8316AEVM: Connectivity Issue when read and write EEPROM and registers

Kenji

Part Number: MCF8316AEVM
Other Parts Discussed in Thread: MCF8316A,

Hi Team

I have a connectivity issue like other people, when read and write EEPROM and registers.

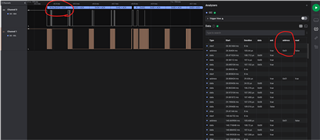

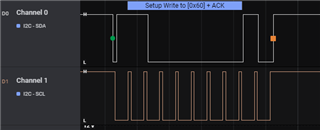

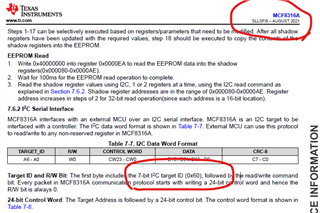

Analysing the I2C bus, I found out that MCF831A device was not found by msp430 MCU.
Therefore, a communication error is occurring.

(Tested with MCF8316A_GUI tool local and online version)

Questins:

How to solve it? By update the msp430 firmware or ....
In the first place, does the MCF8316A IC on the evaluation board work normally?
Is it possible to replace the evaluation board if it is defective with new one?

over 3 years ago

0 Aaron Barrera over 3 years ago

TI__Mastermind 26046 points

Hi Kenji,

Our MCx expert is working on this and we will get you a reply this week.

Thanks,
Aaron

0 Prajkta Vyavahare (PV) over 3 years ago in reply to Aaron Barrera

TI__Prodigy 320 points

Kenji-san

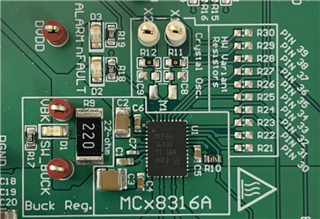

can you share GUI version installed at your end. Also, can you send us a picture of top level device marking from EVM.

thanks,

0 Kenji over 3 years ago in reply to Prajkta Vyavahare (PV)

Intellectual 530 points

Hi Prajkta Vyavahare (PV) -san

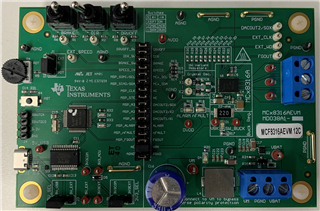

These are the pictures of MCF8316AEVM and GUI version.

0 Vishnu Balaraj over 3 years ago in reply to Kenji

TI__Mastermind 24415 points

Hi Kenji-san,

PMCF8316A is pre-production device and MCF8316A is production device. The GUI that is published on ti.com is for the pre production device (PMCF8316A). You are seeing this error because you are using pre production GUI on the production device. We are targeting to release the Production (MCF8316A) GUI on ti.com by this week.

Regards,

Vishnu

0 Kenji over 3 years ago in reply to Vishnu Balaraj

Intellectual 530 points

Hi Vishnu Balaraj11-san

New GUI software was released?

0 Vishnu Balaraj over 3 years ago in reply to Kenji

TI__Mastermind 24415 points

We released the GUI last Friday but we found few bugs. We are working on those bugs.

Here's the GUI link:

https://dev.ti.com/gallery/view/BLDC/MCF8316A_GUI/ver/1.1.2/

Regards,

Vishnu

0 Kenji over 3 years ago in reply to Vishnu Balaraj

Intellectual 530 points

Hi Vishnu Balaraj11-san

MCF8316A_GUI ver1.1.2 didn't work as I expected.

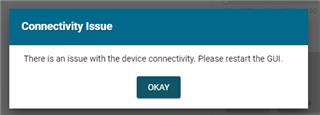

First, I2C communication is not done, like above picture.
There is a hardware issue and not a MCF8316A_GUI bug, I think.
How TI team think about I2C error？

By the way, MCF8316A_GUI ver1.1.2 updates the MSP430 firmware?
I want to see the MSP430 firmware. Please send it to me by e-mail, if possible.

Also I want to know if my board is normal. Is there a way to know?
If it is defective, I would like to have it replaced.
