DRV8244-Q1: Maximum IPROP current

Takahiro Saito

Part Number: DRV8244-Q1

Hi team,

I couldn't find information of the maximum current from IPROP pin.

The EC table shows the current scaling factor of IPROP function is tested up to 8.3A.

I don't think 8.3A / A = 8.3A / 4570(HVSSOP) = 1.8mA is a acceptable maximum current from IPROP pin because this device can handle 21A.

Could you please check the maximum current from IPROP pin?

Customer wants to set the ITRIP function at 15A. So, IPROP current < 8.3A is not enough for it.

Regards,

Saito

over 3 years ago

0 Ryan Kehr over 3 years ago

TI__Guru 55615 points

Saito-san,

I am checking with system team. I agree, device should be able to handle more current, so not quite understanding that specification.

Please give me 24 hours before following-up again.

Regards,

Ryan

0 Ryan Kehr over 3 years ago in reply to Ryan Kehr

TI__Guru 55615 points

Saito-san,

I am sorry for the delay. Please see below:

AIPROPI has been tested only up to 8.3 A. But the parameter still holds good at higher currents and IPROPI will function as intended. We chose to list 8.3A as the test limit as the device can support that level of transient current up to a typical 1 sec duration use case. For lower transients, the device can certainly support higher currents.

Regards,

Ryan

0 Takahiro Saito over 3 years ago in reply to Ryan Kehr

TI__Expert 5455 points

Hi Ryan-san,

I understand DRV8244-Q1 supports IPROP sensing function up to 21A with some duration restriction.

The device supports 8.3A in 1sec usecase. Customer wants to set ITRIP regulation at 15A for inrush current protection. So, how much duration does DRV8244-Q1 support for 15A? I couldn't find the relation between the current and the duration above 11.9A from Table 7-1.

Regards,

Saito

0 Ryan Kehr over 3 years ago in reply to Takahiro Saito

TI__Guru 55615 points

Saito-san,

There is a thermal calculator online in the product folder that will answer that question. Please find under "tools".

Regards,

Ryan

0 Takahiro Saito over 3 years ago in reply to Ryan Kehr

TI__Expert 5455 points

Hi Ryan-san,

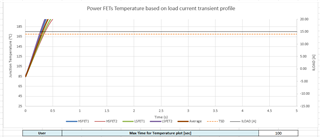

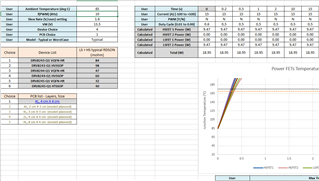

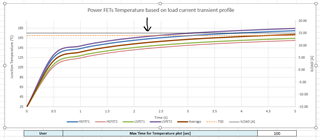

I checked the tool, but I was not sure how to determine the capable duration for 15A.

Customer does not intend to drive 15A with PWM control in steady state. The 15A will flow as an inrush current and they wants to monitor it with IPROP pin.

So, they wants to know how much duration can DRV8244-Q1 support. How do I use to calcurate the duration with the tool?

Regards,

Saito
