MCT8316A: The issue regarding the MCT8316A PCB package generated by Ultra Librarian

Cherry Zhou

Mastermind 22235 points

Part Number: MCT8316A

Hi team,

Here's an issue from the customer may need your help:

In a PCB package generated with Ultra Librarian:

U_PMCT8316A1VRGFR_TEX

U_PMCT8316A1VRGFR_TEX-L

U_PMCT8316A1VRGFR_TEX-M

What is the difference between these three packages TEX TEX-L? What do the three TEX-M suffixes mean? Could you help check this case? Thanks.

Best Regards,

Cherry

over 3 years ago

0 Vishnu Balaraj over 3 years ago

TI__Mastermind 24415 points

Hi Cherry,

I just did a quick search and found U_PMCT8316A1VRGFR_TEX as the name of the footprint for this device. Below is the link. I'm not sure about the other two variants. I guess you can use U_PMCT8316A1VRGFR_TEX as the footprint as this device comes with just one package.

https://app.ultralibrarian.com/details/c93138b0-1623-11ec-9033-0a34d6323d74/Texas-Instruments/PMCT8316A1VRGFR?uid=121346414

Regards,

Vishnu

0 Cherry Zhou over 3 years ago in reply to Vishnu Balaraj

TI__Mastermind 22235 points

Hi Vishnu,

Thanks for your help here.

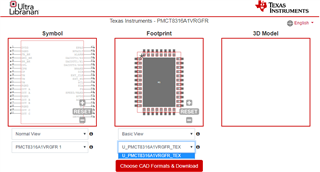

Above are the packages exported from Ultra Librarian, and the .bat implementation will generate the above 3 versions of the package.

The package pad for the L suffix is shorter than the package without the suffix.

The package pad for the M suffix is longer than the package without the suffix.

And they checked again, found previously, this drop-down menu would have three versions of the package can be chosen, but now no packages are available for the -L and -M suffixes.

Thanks and regards,

Cherry

0 Vishnu Balaraj over 3 years ago in reply to Cherry Zhou

TI__Mastermind 24415 points

Cherry,

Thanks for sharing the details. As I mentioned, I'm not sure of the L and M variants. I would recommend using the U_PMCT8316A1VRGFR_TEX.

Regards,

Vishnu
