DRV8311: IC Drawing and Recommended Footprint Missing

Daniel Stutman

Part Number: DRV8311

The DRV8311 (PRRWR specifically) datasheet doesn't have a package drawing or recommended footprint. It refers to a "RRW" drawing that I can't find anywhere (including on your drawing search site). Support referred me to the Ultra Librarian page as "the official source for TI footprints" but I would like a real drawing if it exists.

over 3 years ago

+1 Aaron Barrera over 3 years ago

TI__Mastermind 26046 points

Hi Daniel,

We are releasing the DRV8311H for production, therefore datasheet may temporarily have the package removed until release of the next variant.

Here is the package drawing: 4226269.pdf

Thanks,
Aaron

0 Daniel Stutman over 3 years ago in reply to Aaron Barrera

Prodigy 20 points

Hi Aaron,

I thought your reply resolved my issue, but when I took a closer look I saw some inconsistency. The Ultra Librarian listing linked to on the DRV8311 product page has a footprint that looks like this:

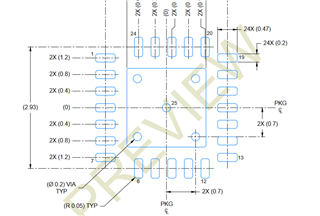

The PDF you sent has an example footprint that looks like this:

The pin layout/numbering is completely different. Which one is correct?

0 Aaron Barrera over 3 years ago in reply to Daniel Stutman

TI__Mastermind 26046 points

Hi Daniel,

Ultra Librarian footprint is wrong. I need to confirm how to fix to the correct footprint. EVM uses this footprint which matches package example footprint I shared.

I'll reach out back once this is resolved.

THanks,
Aaron
