DRV8251AEVM: DRV8251AEVM basic questions

T NF

Prodigy 50 points

Part Number: DRV8251AEVM
Other Parts Discussed in Thread: DRV8251A

Can you provide the following information for DRV8251AEVM

1) Schematic

2) Calculation for VSense. It is not clear what Rsense is on the eval board,

3) Itrip value for the board as shipped

4) How to connect an external MCU to the DRV8251AEVM

I have downloaded and unzipped slvc830.zip. There are multiple schematics pdf and it is not clear which one is for the eval board I received, and I don't want to guess, debug/probe etc. This is the reason why I have asked the questions listed. Thank you.

over 2 years ago

0 Akshay Rajeev Menon over 2 years ago

TI__Mastermind 23426 points

Hey T NF,

Thank you for your question.

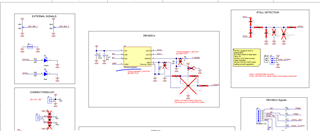

I am linking the correct schematic file which answers most of your questions.

MD039A(001)_Sch.PDF

The multiple schematics are based on the variant and MD039A(001) is the DRV8251A.

Hope this helps answer your questions.

Best,

Akshay

0 T NF over 2 years ago in reply to Akshay Rajeev Menon

Prodigy 50 points

Hello Akshay. thanks for forwarding the schematic.

I have a remaining question/clarification sought. When calculating ITrip for VREF=3.3V, Rtrip=1.5K (per schematic) and A_IPROP1=1575 uA/A (per datasheet), I get a value of 1.39A. Can you please help me understand the calculations behind 2.2A listed as ITrip (in schematic).?

Also, please let me know the tolerance on RTrip (R5 in schematic).

Thanks.

0 Akshay Rajeev Menon over 2 years ago in reply to T NF

TI__Mastermind 23426 points

Hey T NF,

You are correct when VREF = 3.3V then I trip = 1.397 A. The schematic note needs to be updated, sorry for the confusion.

The resistor has a 5% tolerance.

Best,
Akshay

0 T NF over 2 years ago in reply to Akshay Rajeev Menon

Prodigy 50 points

OK thanks for confirming.
