DRV8323R: Sinusoidal drive on 1xPWM mode

Daisuke Higa

Part Number: DRV8323R
Other Parts Discussed in Thread: DRV8353

Hi support team.

My customer is considering BLDC motor system with sinusoidal control by using hall sensor.

They asked us about sinusoidal drive with DRV8323R on 1xPWM mode.

Is it possible to construct system with DRV8353 on 1xPWM mode which BLDC motor is controlled by sinusoidal by using hall sensor?

-Sinusoidal BLDC motor drive system

MCU(1ch PWM output -> DRV8323R(1xPWM mode)->BLDC motor(w/hall sensor)

Best regards,

Higa

over 1 year ago

0 Yara Al Shami over 1 year ago

TI__Genius 15535 points

Hi Higa,

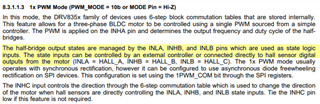

I believe the following answers your question

The DRV8353 1xPWM can be controlled by the hall sensors.

Regards,

Yara

0 Daisuke Higa over 1 year ago in reply to Yara Al Shami

Genius 4370 points

Hi Yara-san

Thank you for answering.

However, from the description in the data sheet you mentioned, it cannot be determined whether sinusoidal control is possible.

It is not important to be able to use a Hall sensor, but rather whether sinusoidal control can be done with 1xPWM.

I believe that only trapezoidal control is possible with 1xPWM.

Is it incorrect?

Best regards,

Higa

0 Andrew Liu over 1 year ago in reply to Daisuke Higa

TI__Mastermind 18981 points

Hi Higa-san,

Yara is OOO for a few days, returning later this week.

Please anticipate a delayed response and we'll get back to you either before the end of this week or early next week.

Best regards,
Andrew

0 Daisuke Higa over 1 year ago in reply to Andrew Liu

Genius 4370 points

Hi andrew-san

Thank you for your reply.

However, my customers are telling us to hurry.

My customer consideration periods are short.

Is it not possible for anyone else to confirm my inquiry?

Best regards,

Higa

+1 Anthony Lodi over 1 year ago in reply to Daisuke Higa

TI__Mastermind 26776 points

Hi Higa-san,

1xPWM mode is for trapezoidal control only. If the customer wants to use sinusoidal control they will need to use 3x or 6x PWM mode and implement the sinusoidal algorithm inside their MCU.

If they are ok with a sensorless solution, the MCF8329 device provides integrated sensorless FOC control that is integrated into the driver.

Regards,

Anthony Lodi

0 Daisuke Higa over 1 year ago in reply to Anthony Lodi

Genius 4370 points

Anthony-san

Thank you for prompt reply.

I understood well and will propose to my customer.

Thanks.

Regars,

Higa

0 Anthony Lodi over 1 year ago in reply to Daisuke Higa

TI__Mastermind 26776 points

Sounds good! Glad to help.

Regards,

Anthony Lodi
