DRV8426: DRV8426 auto retry mode

Part Number: DRV8426

Tool/software:

Hi,

Does keeping enable & nSLEEP pin in high condition with external pullup, keep the DRV8426 in auto retry mode for below condition

1. VM Undervoltage Lockout

2. VCP Undervoltage Lockout

3. Overcurrent Protection

4. Latched Shutdown

5. Thermal Shutdown (OTSD)

what is typical recovery time for auto retry mode?

Does for each above condition can be tracked using nfault pin?

over 1 year ago

0 David Medis over 1 year ago

TI__Mastermind 18900 points

Hi AG,

The Automatic Retry condition will only trigger for OCP or OTSD conditions. During these conditions, EN is high and nFAULT will go low for time tRETRY = 4ms typically and the outputs will be disabled. When IOCP and/or OTSD are less then there threshold values, the device will resume normal operation.

Best,

David

0 AG over 1 year ago in reply to David Medis

Intellectual 345 points

Hi David,

Thanks for reply,

it seems, having control on this (enable) pin does not give any benefit in other fault condition, is it correct?

0 David Medis over 1 year ago in reply to AG

TI__Mastermind 18900 points

Hi AG,

Yes, that is correct. See the Fault Condition Summary table for more details.

Best,

David

0 AG over 1 year ago in reply to David Medis

Intellectual 345 points

Hi David,

Thanks for reply,

Is there any document available, which suggest better handling of this pin to increase the overall operational performance of this chip?

0 David Medis over 1 year ago in reply to AG

TI__Mastermind 18900 points

Hi AG,

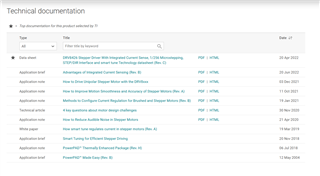

I am not sure I understand your question. We don't have any specific documentation regarding the better performance of the "EN" pin. All supported documentation for this device can be found on the product page.

DRV8426 data sheet, product information and support | TI.com

Best,

David
