Tool/software:
Dear TI experts,
My customer checks the specification of DRV8601, and they want to tie OUT- (pin 8) of 5 DRV8601s.
Is it okay to design the schematic like above? What is the side effect of this concept?
Please check this issue. Thanks.
Best regards,
Chase
Hi Chase,
Please attach your schematic. This device is used to drive a single LRA or ERM as shown in this schematic below. The OUT- and OUT+ connections are also shown below. If you are trying to use OUT- as a ground, this is not allowed. Thank you.
Regards,
Sam

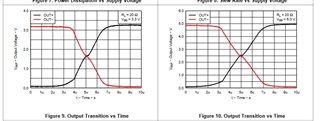

I don't think so, because as you can see from the data sheet, out- can swing to +5 V, it is *not* a "ground":
