DRV8714-Q1: Motor drivers forum

rui saito

Part Number: DRV8714-Q1

Tool/software:

Hi team.

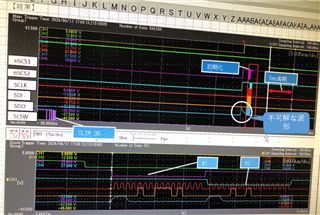

When changing the state as shown below, I observed a momentary voltage rise on the SDO terminal.(White circle in the photo)
Could you please explain the principle behind this voltage rise?
PVDD=12V 　　　PVDD=12V
DVDD=0V 　　DVDD=5V
nsleep=0V 　　　nsleep=5V

over 1 year ago

0 Keerthivasan Kumanan over 1 year ago

TI__Mastermind 18875 points

Hi Saito-san,

GIve me till tomorrow to look into this and get back to you.

Best,

Keerthi

0 rui saito over 1 year ago in reply to Keerthivasan Kumanan

Prodigy 250 points

Hello Kumanan-san

How is the response situation?

0 Keerthivasan Kumanan over 1 year ago in reply to rui saito

TI__Mastermind 18875 points

Hi Saito-san,

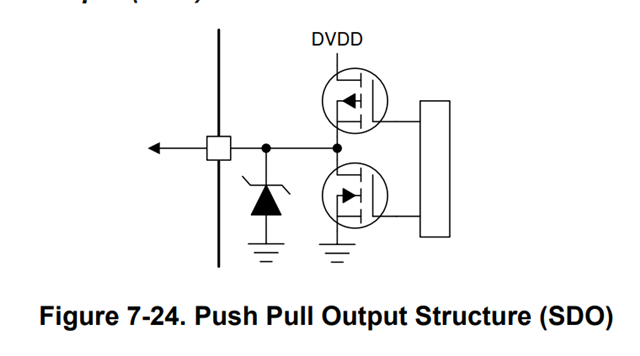

The SDO is a push-pull output structure as shown in the diagram:

when both the pull up and pull-down FETs are disabled then the SDO pin is floating (HI-Z). Since it is HI-Z it picks up any voltage through any sort of coupling.

Best,

Keerthi
