DRV8874-Q1: nSLEEP change then fault will pull down

Haiwen Huang

Intellectual 2150 points

Part Number: DRV8874-Q1
Other Parts Discussed in Thread: DRV8874, , DRV8873-Q1

Tool/software:

Dears:

customer found when change nSLEEP status, will trig fault pull down.

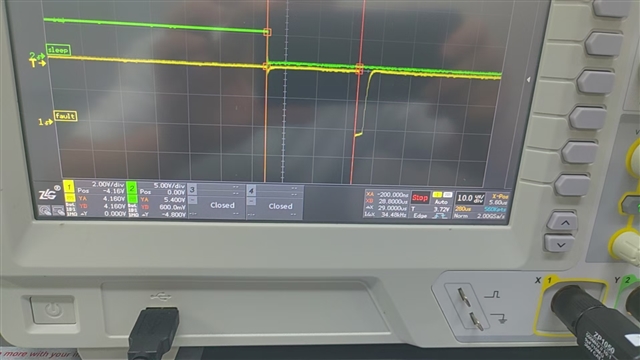

Picture one is nSLEEP from low to high, then fault pull down.

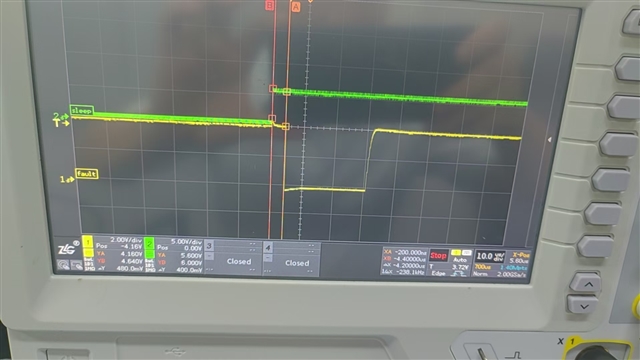

Picture two is nSLEEP from high to low, then fault also pull down.

Could you please help check how to solve this issue ? Thanks.

over 1 year ago

0 Shinya Morita over 1 year ago

TI__Mastermind 44605 points

Hi,

Thank you for your question. Our expert will feedback to you in early of next week

0 Haiwen Huang over 1 year ago in reply to Shinya Morita

TI__Intellectual 2150 points

Shinya:

we found DRV8874 EVM has the same behavior, Could you please help check how to solve it ? Customer PCB will release soon , need you help ASAP. Thanks.

0 Keerthivasan Kumanan over 1 year ago in reply to Haiwen Huang

TI__Mastermind 18425 points

Hi Haiwen,

For the low to high of nSLEEP case it is expected bahavior. Please see section from datasheet:

It might be similar to this thread on e2e for the high to low case:

(+) DRV8873-Q1: About nFAULT - Motor drivers forum - Motor drivers - TI E2E support forums

What impact does this second case have on the system? Are they checking for faults even after putting the device to sleep? If they do, can you tell me why?

Best,

Keerthi

0 Haiwen Huang over 1 year ago in reply to Keerthivasan Kumanan

TI__Intellectual 2150 points

Hi Kumanan:

This is DRV8873-Q1 behavior, I can't find this explanation in DRV8874-Q1 datasheet. Please help confirm DRV8874-Q1 has the same behavior . Thanks.

Keerthivasan Kumanan said:
For the low to high of nSLEEP case it is expected bahavior. Please see section from datasheet:

0 Keerthivasan Kumanan over 1 year ago in reply to Haiwen Huang

TI__Mastermind 18425 points

Hi Haiwen,

Let me check once with systems and get back to you. Sorry for the confusion.

Best,

Keerthi
