MCF8329EVM: Startup-video link

PRABHAT RANJAN TRIPATHI

Expert 1102 points

Part Number: MCF8329EVM
Other Parts Discussed in Thread: MCF8329A

Tool/software:

Eric Chen

You sent a drive link to one of the e2e users to get the MCF 8329EVm out of the MPET tool.

"">e2e.ti.com/.../mcf8329evm-mpet-not-working"

Can you please share the link as it is broken.

10 months ago

0 Sachin S 10 months ago

TI__Expert 6011 points

Hi Prabhat,

We're compiling an article on MPET which talks about failure handling during MPET, please give us a couple of days to share it with you.

Thanks and regards,

Sachin S

0 PRABHAT RANJAN TRIPATHI 10 months ago in reply to Sachin S

Expert 1102 points

When will it be ready?

0 Venkatadri Shantaram84961 10 months ago in reply to PRABHAT RANJAN TRIPATHI

TI__Mastermind 23512 points

Hi PRABHAT,

By next week we will share you the draft.

Few quick tips to unblock you here,

1. MPET R, L measurement (Not available in MCF8329A version). Types of fault and reason briefly explained below

1.1 MPET IPD Fault - 1) DRVOFF Pin may be high, make it low, 2) Winding may be open or ,motor may not be connected

1.2 MPET IPD Frequency Fault - IPD Current is too high so that second pulse starts before first pulse is completely decayed (Current rise and fall time is needed for R, L estimation), reduce the MPET IPD frequency

2. MPET KE Fault - Motor may not be able to spin at speed reference set (Increase open loop current reference but make sure current rating not exceeding 1/2 of rated current of motor, set STAT_DET_THR to lowest , increase the open loop speed reference for low inertia motor

3. Do not select MPET KE and MPET MECH option together, complete MPET KE first and then MPET MECH.

We will share the draft in the couple of days, until then we can continue discussion here.

Thanks and Best Regards

Venkatadri S

0 PRABHAT RANJAN TRIPATHI 10 months ago in reply to Venkatadri Shantaram84961

Expert 1102 points

When can I expect the draft?

0 Venkatadri Shantaram84961 10 months ago in reply to PRABHAT RANJAN TRIPATHI

TI__Mastermind 23512 points

Hi Prabhat

I will share the draft by Friday of this week.

Thanks and Best Regards

Venkatadri S

0 PRABHAT RANJAN TRIPATHI 10 months ago in reply to Venkatadri Shantaram84961

Expert 1102 points

Venkatadri Shantaram84961 said:
Do not select MPET KE and MPET MECH option together, complete MPET KE first and then MPET MECH.

Yup, when I tried things individually, Ke was measured correctly, but when I select MECH and run MPET, the motor keeps spinning indefinitely, and no measurement is done. Motor status always shows MOTOR_MPET_KE_MEASURE even when only MECH measurement is selected.

0 Venkatadri Shantaram84961 10 months ago in reply to PRABHAT RANJAN TRIPATHI

TI__Mastermind 23512 points

Hi Prabhat,

For MCF8329A you need to measure R,L and program.

Then run KE and MECH.

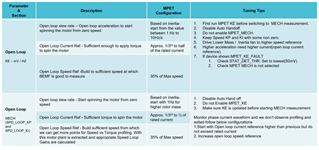

Please refer to this table for details and suggestion for configuring for successful MPET.

Thanks and Best Regards

Venkatadri S

0 PRABHAT RANJAN TRIPATHI 9 months ago in reply to Venkatadri Shantaram84961

Expert 1102 points

Still waiting for the documents.

0 Venkatadri Shantaram84961 9 months ago in reply to Venkatadri Shantaram84961

TI__Mastermind 23512 points

Hi Prabhat,

You can refer to the tuning guide https://www.ti.com/lit/ug/sllu374/sllu374.pdf

Can you share motor details here?

Need rated current, Voltage, Motor winding resistance, inductance and max speed.

If you know pole pair provide that as well.

Thanks and Best Regards

Venkatadri S
