DRV8329AEVM: With MSPM0G3507 LaunchPad, I have questions about the pin settings in the guide.

donguk Lee
Prodigy 200 points
Part Number: DRV8329AEVM
Other Parts Discussed in Thread: DRV8329, SYSCONFIG

Tool/software:

Hi expert,

https://dev.ti.com/tirex/explore/content/mspm0_sdk_2_03_00_07/docs/english/middleware/motor_control_pmsm_sensorless_foc/doc_guide/doc_guide-srcs/drv8329/DRV8329_Hardware_User_Guide.html

According to the hardware guide above, pins PA17 and PA24 are supposed to be connected to ISENA on the DRV8329 board, but looking at the pin settings in the software example, it seems more appropriate to connect them to PA18.

In this way, the descriptions in the software examples and hardware setup guides don't seem to match.

Thanks Donguk

  • 0
    Prodigy 200 points

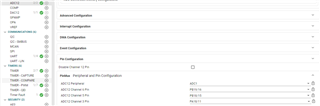

    I solved this problem by modifying sysconfig and gateDriver.h and drv8329_focHalInterface.c. I thought I only had to change the motor parameters since it was an example code, but I found out that I had to additionally configure the ADC for current sensing. The problem was completely solved. However, I think I should add the default setting of PA17 and PA24 for ADC sensing in the example code.

  • 0 in reply to donguk Lee
    TI__Genius 14532 points

    Hi donguk,
    I'll make sure to let the team know to fix this.

    Best Regards,

    Diego Abad
