DRV8847: DRV8847 Output in proper

Hi Yogesh,

Thanks a lot for the question.

My team mate will review the request and get back to you.

Thanks,

ibinu

Thanks ibinu

Please update

Hi Yogesh,

What logic sequence are you applying to the input pins? From the schematic it looks like the IN0 signal is connected to pin 15 (IN2), its possible that the input signals could be reversed.

Are the inputs using PWM or 100% duty cycle?

Best,

David

Dear David,

Thanks for update,

1) What logic sequence are you applying to the input pins?

Ans : const char PMTab[3] ={0x83,0xA3,0XC3};

example: format of bits    msb - lsb
  0x83,   1        0    0       0  0  0          1    1   
   enable  int2 int1    for thermal      off if error 

  2) From the schematic it looks like the IN0 signal is connected to pin 15 (IN2), its possible that the input signals could be reversed.

Ans :  we will reverse the pin, Then we check and update.

3) Are the inputs using PWM or 100% duty cycle?

Ans : No

Regards,

Yogesh.

Hi Yogesh,

Its encouraged to evaluate using the DRV8847EVM. This can help accelerate the design process and offers help designing firmware by downloading all available software on the product page.

Best,

David

Dear David,

Point 1

 We tried the following as per your suggestion.

your suggestion :- (What logic sequence are you applying to the input pins? From the schematic it looks like the IN0 signal is connected to pin 15 (IN2), it is possible that the input signal is inverted.)

The printing motor did not move.

Point 2

 This is different solution, our existing problem is different, how to resolve existing problem.

Please guide us .

We will definitely try DRV8847EVM module for next project.

Regards,

Yogesh

Hi Yogesh,

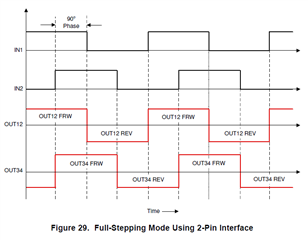

Is the load a stepper motor? If so, the only operation supported for stepper motors with the 2-pin interface is full-step. Do you need higher microsteps for this print?

Best,

David

Dear David,

Thanks For replay,

Printer Head motor load : ( 4.2 VDC to 8.5 V, average current 0.87A (0.93),peak value Printing ratio: 12.5%, printing speed 50mm/sec. at 7.2 V).

How to set the current in a 2-pin interface.

Regards,

Yogesh.
