Part Number: DRV8328
Other Parts Discussed in Thread: DRV8323, DRV8300, MSPM0G3507

Tool/software:

1. Must the pin Pdd be connected with the top supply of power-MOSFETs (ICs: DRV8328 +8329)?

2. Can the pin Pdd be supplied from a buck with an output voltage of about 5V?

3. Where can I find the source pin leakage current for other families DRV 835x + DRV8323 etc?

regards

Zbyno

8 months ago

0 Akshay Rajeev Menon 8 months ago

TI__Mastermind 23516 points

Hey Zbyno,

1. I assume you are referring to the PVDD pin. The PVDD pin is the supply for the driver and the Supply for the drain of the MOSFETs. They should be the same node so that your VDS monitors work as expected. This device is not meant for split supply operation.

2. What is your motor voltage? Is the buck able to deliver the driver current and motor current at the desired voltage.

Keep in mind the minimum recommended voltage is 4.5V on PVDD, so please account for transients.

3. We do not have leakage current spec for these two parts in the DS. Are you seeing any unexpected behavior?

Best,

Akshay

0 zbyno brudny32 8 months ago in reply to Akshay Rajeev Menon

Intellectual 260 points

Thanks, Akshay

I understood the device was not meant for split supply, but does version 8328C or 8328D (without VDS-input) or version A with disabled VDS monitoring work with split supply without damage of DRV8328?

regards

zbyno

0 Akshay Rajeev Menon 8 months ago in reply to zbyno brudny32

TI__Mastermind 23516 points

Hey Zbyno,

So PVDD of 5V. What is the motor voltage (mosfet drain voltage)?

Best,

Akshay

0 zbyno brudny32 8 months ago in reply to Akshay Rajeev Menon

Intellectual 260 points

Hi Akshay,

MOSFET drain voltage will be 48V +/-22 %.

regards

zbyno

0 Akshay Rajeev Menon 8 months ago in reply to zbyno brudny32

TI__Mastermind 23516 points

Hey zbyno,

DRV8328 is not rated for 48V applications. You should be looking at our 100V rated parts for 48V applications such as DRV835x, DRV816x and DRV8300.

Also when you say 48V +/22% does that mean battery tolerance? Because the abs max is in relation to driver pin which might see more transients which can lead to abs max violations.

When you power PVDD using 5V and have a higher BST voltage then the trickle charge pump wouldn't be able to replenish the BST so you cant do 100% duty cycle. Furthermore, you run the risk of potentially back powering TCP.

Best,
Akshay

0 zbyno brudny32 8 months ago in reply to Akshay Rajeev Menon

Intellectual 260 points

Thanks Akshay,

Will it be without a risk for MOSFET drain voltage 24V +/-25 %?

regards

zbyno

0 Akshay Rajeev Menon 8 months ago in reply to zbyno brudny32

TI__Mastermind 23516 points

Hey zbyno,

I will provide feedback by tomorrow.

Thanks,

Akshay

+1 Akshay Rajeev Menon 8 months ago in reply to Akshay Rajeev Menon

TI__Mastermind 23516 points

Hey zbyno,

The PVDD voltage of 24V+/- 25 would be fine as long as you are not doing split supply.

Best,

Akshay

0 zbyno brudny32 7 months ago in reply to Akshay Rajeev Menon

Intellectual 260 points

Hi Akshay,

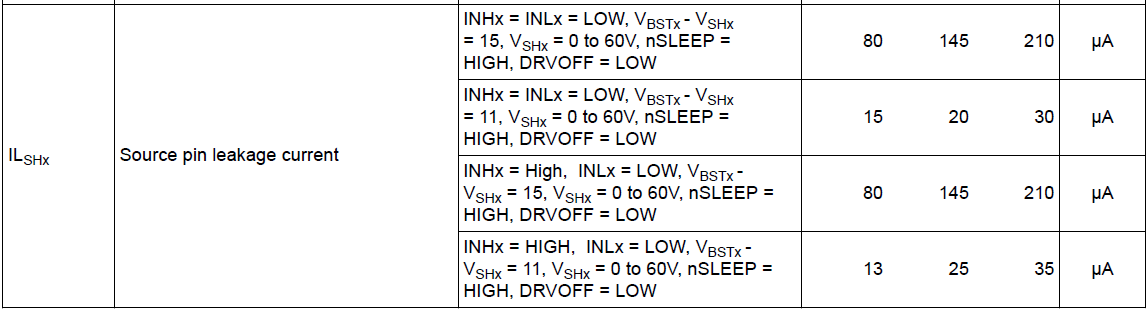

1. I asked 2 months ago if other members of the DRV8xxx- family have similar parameters in datasheets like DRV8328/29 the leakage current ILshx for source pins.

I did not find them.

2. The reason why I have asked you, can be found in my article:

https://www.researchgate.net/publication/388555117_The_ultra-cheap_diagnostic_circuit_for_BLDC

Best regards

Zbyno Brudny

0 Akshay Rajeev Menon 7 months ago in reply to zbyno brudny32

TI__Mastermind 23516 points

Hey zbyno,

I will pass this feedback to our systems team on the leakage current missing in DS.

Thanks,

Akshay

0 zbyno brudny32 7 months ago in reply to Akshay Rajeev Menon

Intellectual 260 points

Thanks, Akshay

What do you think about the solution I have described?

Note: by the measure of the motor resistance we can use the OP with gain (4x, 8x or 16x) in MSPM0G3507

for the more precise measure

regards

Zbyno

0 Akshay Rajeev Menon 6 months ago in reply to zbyno brudny32

TI__Mastermind 23516 points

Hey Zbyno,

It seems you are designing external circuitry for BLDC system to diagnose system health. I will take a look at this.

Best,

Akshay

0 zbyno brudny32 6 months ago in reply to Akshay Rajeev Menon

Intellectual 260 points

Thanks, Akshay

I will wait for your opinion

best regards

zbyno
