DRV8328: finding issue in the rotation of the motor

Tejas N

Part Number: DRV8328

Tool/software:

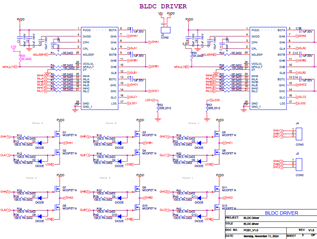

We are using a drv8328 gate driver for our 12V BLDC motor rated at 10A max, and we are facing the issue of the rotation of the motor.

Can anyone give us the logic of rotation for the 3-phase BLDC motor?

0 Akshay Rajeev Menon 5 months ago

Hey Tejas,

Thank you for the question. We will aim to provide an update before the end of the week.

Best,
Akshay

0 Yara Al Shami 5 months ago in reply to Akshay Rajeev Menon

Hi Tejas,

Can you give some more detail around the issue? Is the fault pin latched?

You can find simple logic tables based on the PWM mode selected in the datasheet:

Regards,

Yara

0 Tejas N 5 months ago in reply to Yara Al Shami

Yes, we have done this. the thing is, the motor rotates little bit like a jerk and stops

0 Yara Al Shami 5 months ago in reply to Tejas N

Do you have output waveforms?

GHx to SHx, SHx to GND, and GLx to GND? Is there any fault being triggered?
