DRV8714-Q1: Offline diagnostics No Fault condition

Sathish Kumar J

Part Number: DRV8714-Q1

Tool/software:

Hello,

When DRV8714-Q1 is used as H-Bridge, I would like to know that how ~5.3V is appearing at SH1 and SH2 during offline diagnostics in the case of no fault.

Thanks,

Sathish.

4 months ago

0 Shinya Morita 4 months ago

TI__Mastermind 44415 points

Hi,

Thank you for your questions.

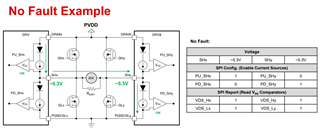

~5.3V comes from internal circuit structure. Left side of high side current source is ON and right of low side current source is ON. SH voltage will be balanced ~5.3V.

regards

Shinya

0 Sathish Kumar J 4 months ago in reply to Shinya Morita

Prodigy 50 points

Hi,

We plan to have voltage divider on SHx and SHy lines. In this case, what would be the impact of voltage divider on offline diagnostics?

0 Shinya Morita 4 months ago in reply to Sathish Kumar J

TI__Mastermind 44415 points

Hi,

current source is ~3mA. If leakage current by resistor divider is enough high, impact could be ignored.

Let's say, >100Kohm could be good high resistance. (13V/100Kohm = 0.013mA)

regards

Shinya Morita
