DRV8376: The Vin issue for DRV8376

Zhang Liang

Part Number: DRV8376

Tool/software:

Hi,

We consider to use the DRV8376 in our motor driver project, and now, we has no idea the Vin logic input voltage because there are no description in datasheet,

can you explain the device design principlefor the Vin voltage? and how to get the 5.5V max. voltage from the Vvm(24VDC)? Thanks.

4 days ago

0 Akshay Rajeev Menon 3 days ago

TI__Mastermind 23636 points

Hey Zhang,

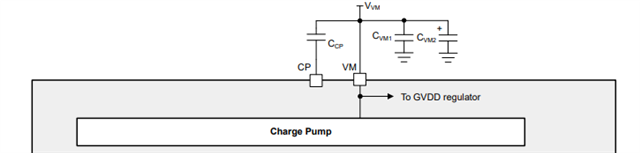

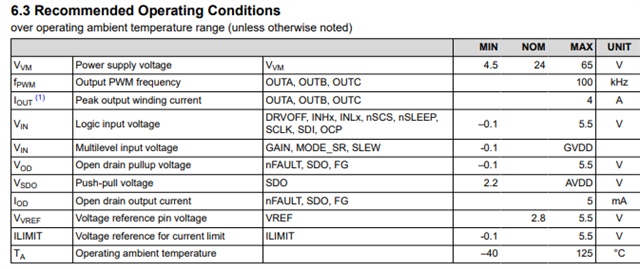

The supply input is called VM and the logic pin voltage is called Vin. You can find their allowed voltage ranges in the table attached below from the datasheet.

Vin can be from your MCU for your logic pins.

Best,

Akshay

0 Zhang Liang 2 days ago in reply to Akshay Rajeev Menon

Genius 4205 points

Hi Akshay,

Thanks for your reply.

So you mean the Vin is from the extend( Like the MCU or IO), and it is not the Internal power conversion from the Vvm?

+1 Akshay Rajeev Menon 23 hours ago in reply to Zhang Liang

TI__Mastermind 23636 points

Hey Zhang,

Yes, the Vin is the input your are supplying to the pins listed in the table like (DRVoff, INHx etc).

Please mark the thread as resolved if this answered your question.

Best,

Akshay

0 Zhang Liang 15 hours ago in reply to Akshay Rajeev Menon

Genius 4205 points

Hi Akshay,

Got it, thanks for your kindly support.
