Eagle symbol/footprint for DRV8833 16HTSSOP

Maddox

Other Parts Discussed in Thread: DRV8833

Anyone know of an eagle schematic symbol and footprint for the DRV8833 in the 16HTSSOP package?

Thanks.

0 Tony Philipsson over 13 years ago

Guru 12050 points

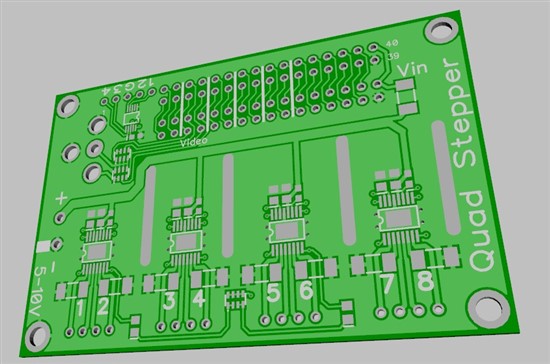

Diptrace has the pattern in SOP lib as TSSOP-16EP

As Eagle is oldschool make the switch.

0 Ryan Kehr over 13 years ago in reply to Tony Philipsson

Maddox,

Sorry, but we don't have any footprints in Eagle here at TI.

0 Mohamed Halloul over 10 years ago

check this :: http://goo.gl/wbmUrG
