DRV2603 pinout

Des Richards1

Other Parts Discussed in Thread: DRV2603

Can someone supply the pinout for the DRV2603,It does not appear to be in the data sheet.

0 Brian Burk over 12 years ago

Des,

Can you please request the full datasheet which contains the pin out information? The request link can be found on the DRV2603 product webpage.

Thanks,
Brian

0 Pial over 12 years ago

Dear Des,

The pinout in the datasheet is different from what you wrote, it is actually:

10 GND

1 EN 9 OUT+

2 PWM 8 GND

3 LRA/Not ERM 7 VDD

4 NC 6 OUT-

5 GND

Best regards,

Pierre-Alexandre

0 Brian Burk over 12 years ago in reply to Pial

Pierre,

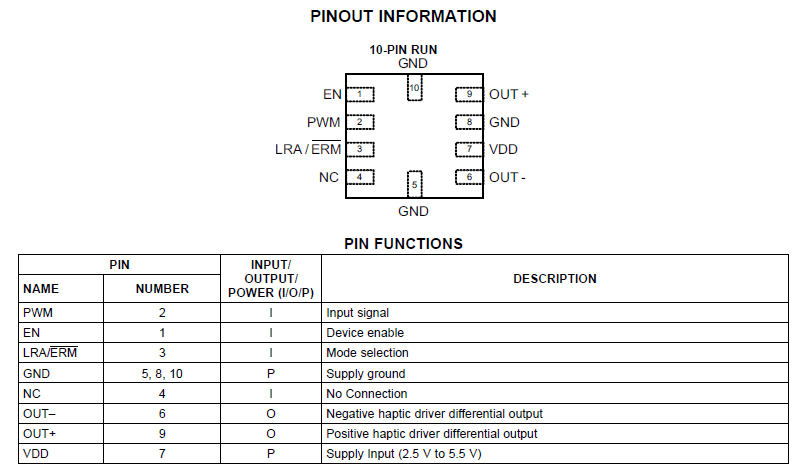

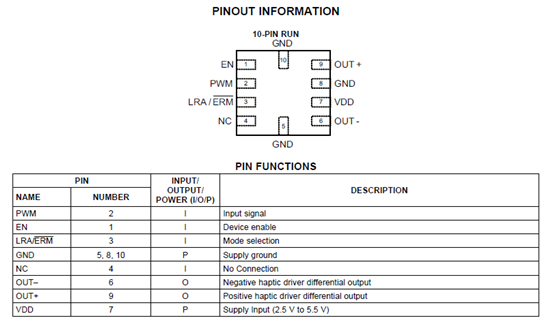

Thanks for correcting this. Here is the pin-out from the datasheet. The datasheet can be requested on TI.com through the DRV2603 product webpage.

Thanks,
Brian
