DRV2603 Issues

Lindsay Smith

Prodigy 90 points

Other Parts Discussed in Thread: DRV2603, DRV2603EVM-CT, MSP430G2553

I have recently obtained a DRV2603 EVM-CT and have been trying to modify the firmware via CCS.

It seems like I cannot get the device to register on my computer using an MSP430 eZ430-F2013 development kit.

I get an "Unknown Device" error.

It registers as discovered under my connected devices when plugged in, and a boot sequence occurs when I connect them.

I am concerned I have obtained a model with a bad SBW port.

I am running CCS 5.4.0.00091 under Windows 7

over 12 years ago

0 Brian Burk over 12 years ago

TI__Genius 9670 points

Lindsay,

I apologize for the inconvenience. The eZ430-F2013 no longer supports the MSP430G2553 micro-controller. We suggest switching to the MSP430 Launchpad board which is under $10. Please also order the J4 header mentioned in the DRV2603EVM-CT User's Guide.

Let me know if you have any questions.

Thanks,
Brian

0 Lindsay Smith over 12 years ago in reply to Brian Burk

Prodigy 90 points

J4 header? Is there a link you can provide to that part specifically.

And I am looking at a MSP-EXP430G2, is that the exact part necessary?

0 Brian Burk over 12 years ago in reply to Lindsay Smith

TI__Genius 9670 points

Lindsay,

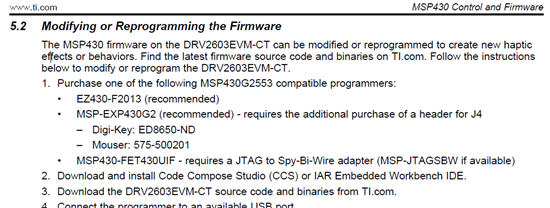

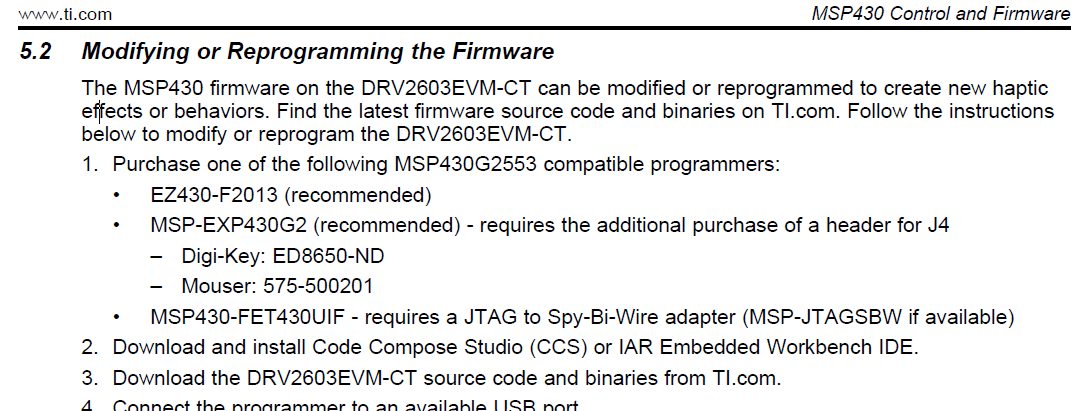

In the DRV2603EVM-CT User's Guide, there is a short firmware programming section. It lists the part number from Digi-Key and Mouser. See snippet below.

Digi-Key: http://www.digikey.com/product-detail/en/850-10-050-20-001000/ED8650-ND/279663

Mouser: http://www.mouser.com/ProductDetail/Mill-Max/850-10-050-20-001000/?qs=HJ60cwpDT2zPYn1F9YEldQ==

Solder this header to the J4 header holes on the MSP430 Launchpad. Then connect it to the SBW socket on the DRV2603EVM-CT.

Let me know if you have any questions.

Thanks,
Brian
