DRV2604L / default value of NG_THRESH[1:0] resister(0x1D)

K.Yaita

Guru 29720 points

Other Parts Discussed in Thread: DRV2604L

Hi Team,

I found mismatch description in DRV2604L datasheet.

Which is correct default value of NG_THRESH[1:0] resister 1(dec) or 2(dec)?

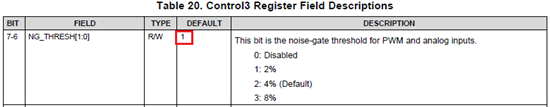

The datasheet shows "1" at "DEFAULT" and "2:4%(Default)" at "DESCRIPTION" in page.48

My datasheet revision shows "SLOS883-MAY 2014".

Best Regards,

Yaita / Japan disty

0 Peter Li79 over 10 years ago

Hi, Yaita-san:

NG_THRESH[1:0] is in register 0x1d.

the default value for this is 0b10.

2:4% (Default)

0 K.Yaita over 10 years ago in reply to Peter Li79

Guru 29720 points

Hi Peter-san,

I appreciate for your quick reply.

I understood.

I think red square part is typo(Page48).

Best Regards,

Yaita

0 Peter Li79 over 10 years ago in reply to K.Yaita

Hi, Yaita-san:

Yes, another typo...
